Infinium® 12-Bay Charger

Accessories, Chargers / Power Supplies / Batteries

CHG 005

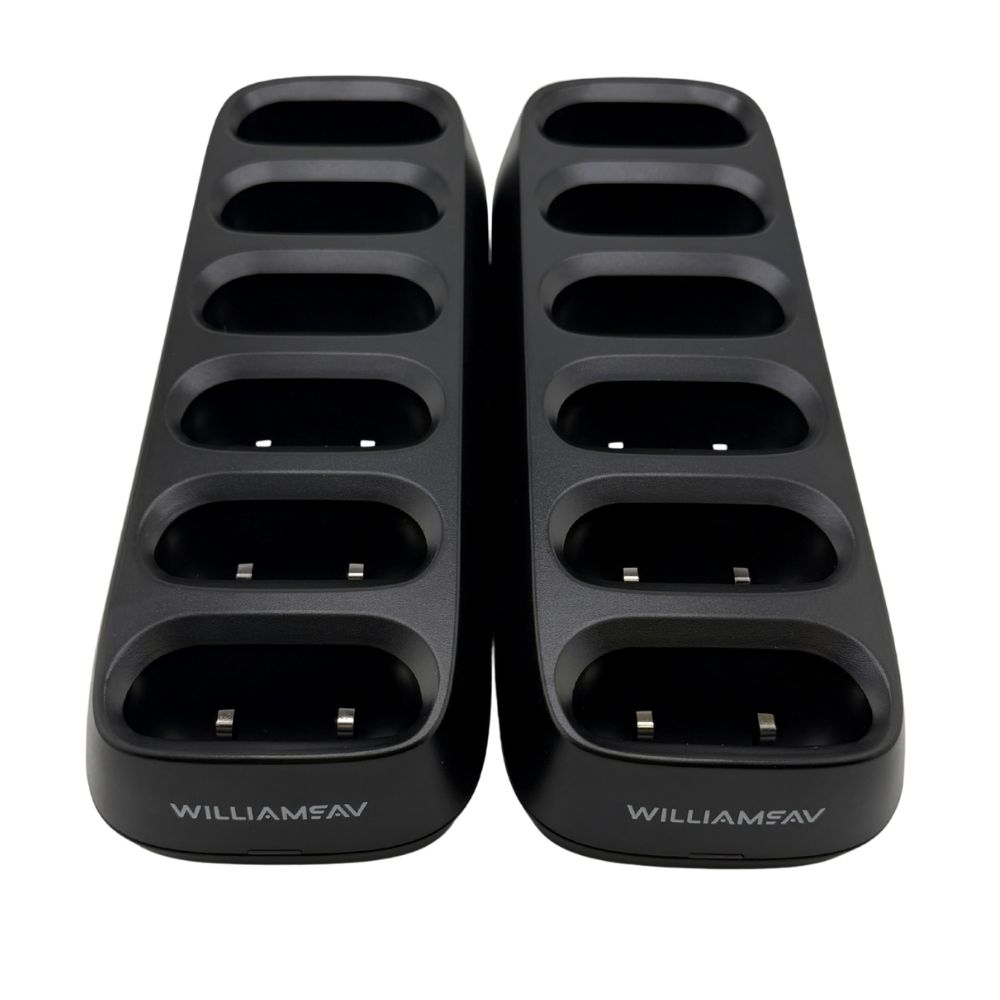

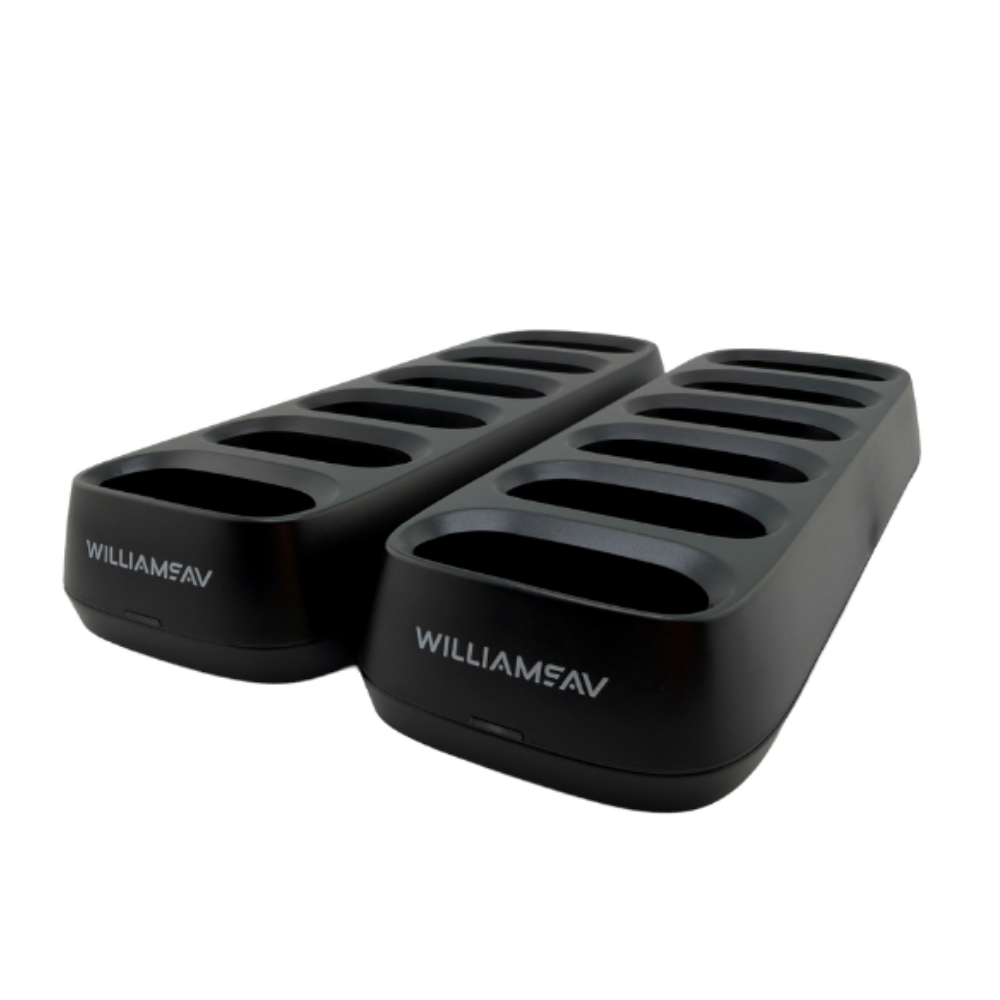

The Infinium 12-Bay Receiver Charger provides a convenient, space-efficient solution for charging and storing Infinium receivers in high-use environments. The system consists of two 6-bay drop-in chargers that can be easily assembled into a single 12-bay configuration using the included bracket assembly kit.

  • Drop-in, multi-unit charger for up to 12 Infinium receivers
  • Two 6-bay chargers combine to form one integrated 12-bay charging station
  • The included bracket assembly kit allows fast, secure assembly into a unified charger (some assembly required)
  • Organized storage keeps receivers charged and easy to deploy

Battery Safety Caution.
Do not attempt to open, disassemble, or service the battery pack. Do not crush, puncture, short contacts or dispose of in fire or water. Do not incinerate or expose to temperatures above 140ºF (60ºC). Do not charge in temperatures above 114ºF (40ºC) or below 41ºF (5ºC). If the receiver or battery swells, discontinue use immediately. Replace only with a battery pack designated for this product. Recycle or dispose of properly.

Important Charging Instructions

  • Charge receivers using only the Williams AV approved chargers (CHG 003 or CHG 004). Failure to do so may void the warranty.
  • Disconnect the receivers from the charger once they are fully charged.
  • Do not leave the receiver unused for extended periods. If the receiver is not in regular use, store at around 50% charge level.

System Includes

(2) CHG 004 – Infinium 6-Bay Drop-In Battery Charger
(1)  Power supply
(1)  RPK 011 – Mounting bracket
(1) WCA 157 – Y-Splitter Cable

CHG 005

Dimensions 10.0″L x 3.55″W x 1.56″H (254 mm L x 90 mm W x 40 mm H)
Item Weight 22.8 oz (646.3 g)
Shipping Weight 3.2 lbs (1.45 kg)
Enclosure Black, PC/ABS plastic
Charger Power Input: 5 VDC, 3.0 A | Output: 5VDC, 0.5A per bay

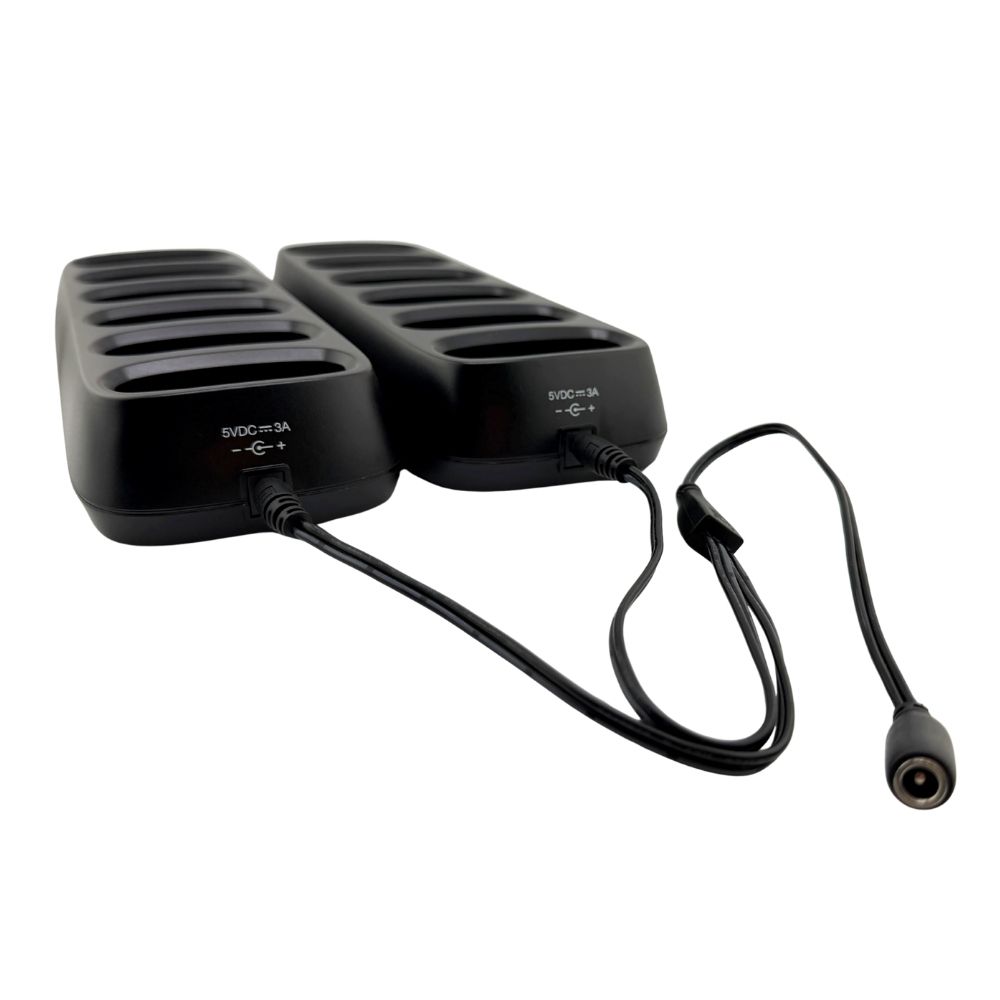

Charger Input Connector DC barrel jack, 2.1 mm pin diameter, center positive
Power Supply TFP 066, Output: 5 VDC, 6A
Power Supply Input 100-240 VAC, 50-60Hz, 1.4 A
Charging Time 4 hours nominal
Unit Capacity: 12 units
Compatible Units: Infinium BA R1 Receivers
Indicators: Red LED (1) – Charger is plugged into power.
Approvals: CE, UKCA, RCM, RoHS
Warranty: 2-year (cables and power supply warranty for 90 days)
