Charger kit for body-packs, 2-bay

BAT KT6

$120.00

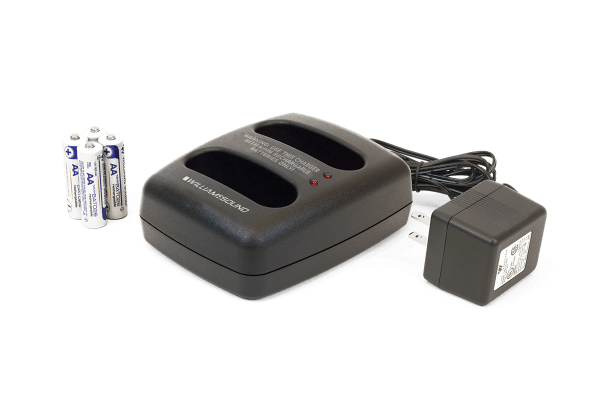

3 Volt Dual Drop in Charger Kit with CHG 3502 and two (2) AA Bat 026-2 batteries. 7″ x 5″ x 2-1⁄16″. 1.3 lbs.

For use with:

PLR BP1 Loop receiver
PPA R37 FM receiver
PPA R38 FM receiver
PPA T46 FM transmitter
WIR RX22-4 Infrared receiver

Features

3 Volt Dual Drop in Charger Kit with CHG 3502 and two (2) AA Bat 026-2 batteries. 7″ x 5″ x 2-1⁄16″. 1.3 lbs.

CHG 3502

Dimensions:

4-7/8"L x 3-7/8""W x 2"H (12.4 cm L x 9.8 cm W x 5.1 cm)

Shipping Weight:

1.1 lbs (0.5 kg)

Enclosure:

Black, ABS plastic

Charger Power:

Input: 6 VDC, 300mA, Center Positive.

Output: 100mA per bay.

Power Supply:

Williams AV TFP 041 (US)

Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A

Output: 6 VDC, 1.5 A.

Charging Time:

16 hours nominal *

Unit Capacity:

2 Units

Indicators:

2 Red LEDs - one for each bay. LEDs are lit when charging.

Approvals:

CE, FCC, RoHS



Warranty

1 Year
