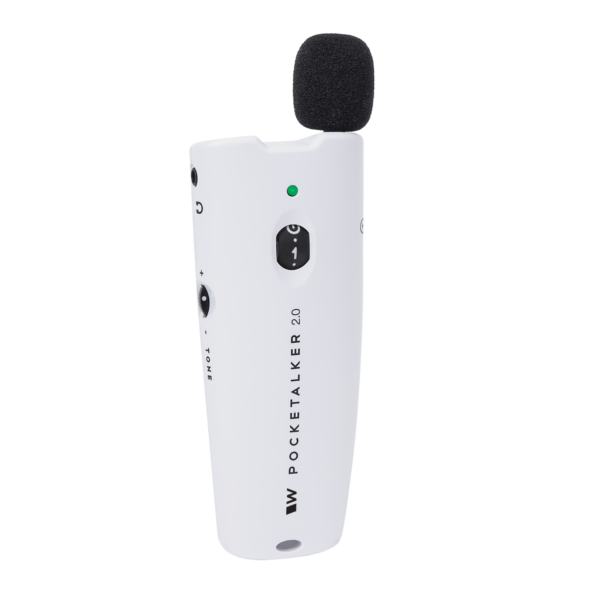

The Pocketalker® 2.0 is a versatile, high quality assistive listening device designed to improve communications in difficult listening situations. The Pocketalker delivers clear, distinct sound, while its large, manageable controls provide for easy operation.
Use the Pocketalker to improve listening on a one-to-one basis, in small group situations, while listening to your favorite TV or radio programs, or while riding in the car.
The Pocketalker is not sold, advertised, or intended for use as a personal hearing aid. Williams Sound recommends that any individual experiencing hearing loss be examined by a physician/audiologist to determine the cause before using an amplification device like the Pocketalker.
Features
The Pocketalker 2.0 Personal Amplifier (PKT 2.0-0 | UPC 707976051769) features:
- Ergonomic, lightweight design
- Extended high and low frequency range
- Superior sound quality
- Internal microphone
- Built-in T-coil loop compatible
- Rechargeable ready
- CE (Note 1) Approval
PKT 2.0-0
Dimensions:
|
4.9” L x 2.0” W x 1.0” H. (124mm x 51mm x 25mm) (Not including clip or microphone assembly)
|
Weight:
|
3.1 oz. (88 grams) (with batteries)
|
Color/material:
|
White ABS/Polycarbonate molded plastic case.
|
*Battery Type:
|
Two (AAA size), either 1.5 VDC Alkaline* or 1.2 VDC NiMH rechargeable*
(Williams Sound BAT 010-2 Alkaline or BAT 022-2 NiMH)
|
Battery Life:
|
Up to 105 hours (typical usage) with the BAT 010-2 (Alkaline).
Low Battery Indicator: Power “On” Green light on front panel flashes.
|
**NiMH battery Charging:
|
Charging: 16 hours with BAT 022-2. Red LED blinks when charging.
End of Charge: Red LED is on solid. At end of charge, maintenance charge is provided.
NOTE: Charging requires optional charging kit BAT KT7.
|
Microphone:
|
Internal, omnidirectional MEMS microphone (micro-electro-mechanical system).
|
Optional External, omnidirectional, plug-in electret microphone with foam windscreen and 3.5mm mono plug (MIC 014-R).
|
T-Coil:
|
Internal with on/off switch and LED indicator.
|
Tone Control:
|
External rotary control knob allows user to adjust high/low frequency to optimize hearing.
|
***Balance Control:
|
Adjusts Left/Right Volume Balance
|
Power/Volume Control:
|
External rotary volume control knob with integrated power ON-OFF switch.
|
Microphone Jack:
|
3.5 mm, stereo mini plug.
Tip=Mic signal, Ring=NC, Sleeve=Gnd.
|
Headphone Jack:
|
3.5 mm, stereo mini plug.
Tip=Left/Mono, Ring=Right, Sleeve=Gnd.
|
Optional Accessories:
|
Clip: CLP 014; Allows the user to clip MIC 014 to clothing such as a lapel or shirt pocket.
Lanyard: RCS 003; Allows user to wear unit around the neck, or as a wrist strap.
3.5mm-3.5mm Extension Cord: WCA 007 WC; extends an external microphone to 12 ft.
Stereo Earphones / Headphones / Neckloop:
EAR 042 / HED 024, HED 036 / NKL 001-S (stereo) Neckloop
Mono Earphones / Headphones / Neckloop***:
EAR 013, EAR 008, EAR 022, EAR 041 / HED 021, HED 027 / NKL 001 (mono) Neckloop
Charging Kits: BAT KT7
|
Approvals:
|
CE (Note 1), RoHS2 (Note 2), FCC, IC, WEEE (Note 3)
|
Warranty:
|
5 years, parts and labor (90 days on accessories)
|
Electrical Specifications (1 kHz Sine Wave reference) Typical
|
Power output:
|
52 mW (max) into 32 ohms (Stereo)
|
ALC:
|
Automatic Level Control; Limits maximum output level
|
Distortion:
|
1% THD (max)
|
Max gain:
|
63 dB @ 2.5 kHz (Tone=High)
|
Operational temperature:
|
41°F to 104°F (5°C to 40°C)
|
Frequency response
|
Tone Control at high position:
|
2.7dB boost at 5 kHz, 6.7dB cut at 400 Hz.
|
Tone Control at mid position:
|
0.6dB cut at 5 kHz, 2.9dB cut at 400 Hz.
|
Tone Control at low position:
|
2.0dB cut at 5 kHz, 3.0dB boost at 400 Hz.
|
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
*Battery switch must be in correct position for battery type being used.
**Charging requires optional charging kit BAT KT7.
***When using mono earphones, headphones or neckloop, the balance control on the Pocketalker must be turned fully counter-clockwise (to the “mono” position) for best volume and battery life.
The Pocketalker is not sold, advertised, or intended for use as a personal hearing aid. Williams Sound recommends that any individual experiencing hearing loss be examined by a physician/audiologist to determine the cause before using an amplification device such as the Pocketalker.
Acoustic Specifications for Headphones recommended for use with the Pocketalker are published on our website.
Note 1: CE approval does not apply if product does not display the CE mark.
Note 2: RoHS2: Directive 2011/65/EU
Note 3: WEEE: Directive 2012/19/EU
This product is covered by the European directives above, including amendments, concerning Waste Electrical and Electronic Equipment (WEEE). Recycle the product and its accessories according to national regulations.
EAR 042
Style |
Dual, in-ear, isolation earphones |
Plug |
3.5mm stereo |
Cord |
39" |
Driver Size |
10 mm |
Nominal Impedance |
32Ω |
Freq. Response |
20 - 20kHz |
Weight |
10g |
Max Power Input |
5 mW |
Sensitivity |
104 dB @ 1kHz |
Replacement Silicone Tips |
EAR 043 (0ne pair) |
HED 024
Style |
Stereo Headphones |
Plug |
3.5mm stereo |
Cord |
39" |
Driver Size |
30 mm |
Nominal Impedance |
16Ω |
Freq. Response |
20 - 20kHz |
Weight |
60g |
Max Power Input |
100 mW |
Sensitivity |
108 dB @ 1kHz |
Replacement Pads |
HED 023 (one pair) |
MIC 014-R
Phantom Powered |
No |
Pick-Up Pattern |
Omni-directional |
Element |
Electret Condenser |
Mic Diameter |
10 mm not including windscreen
19 mm with windscreen |
Sensitivity |
-42 dB ± 3 dB |
Frequency Range |
20 Hz - 16 kHz |
Output Impedance |
2.2 kΩ |
Standard Operation Range |
2 - 10 V DC |
Signal-to-Noise Ratio |
[gt]58 dB |
Replacement Windscreen |
WND 002 |
Optional 12 ft Extension Cord |
WCA 007 |
Optional Microphone Clip |
CLP 014 |
Color |
Gold |
Weight |
5 g (0.2 oz) |
Plug |
3.5 mm mono |
Cord |
None |
Approvals |
RoHS |
Warranty |
90 days |
Warranty
5 Years
