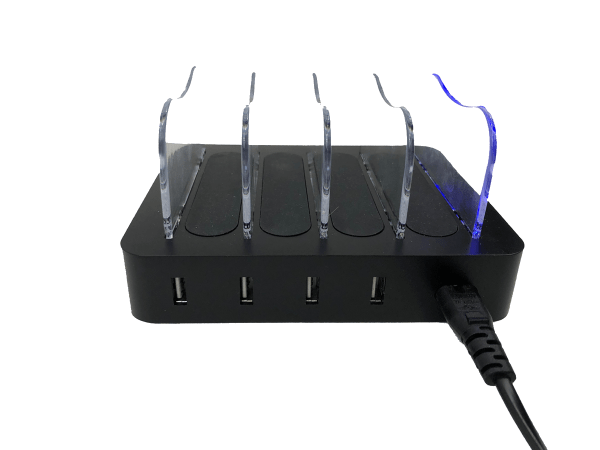

4 Bay Charger

CHG 404

4-slot charging bay for WaveCAST WF-R2 Receivers and Digi-Wave DLT 400 and DLR 400 RCH.

Includes Power Supply.

Two versions available that come with the appropriate charging cables for your device:

  • CHG 404 WF for WaveCAST (WF R1) comes with USB micro-B cables
  • CHG 404 DW for Digi-Wave 400 Series (DLT/DLR 400) products comes with USB C cables

Bays

CHG 404

Dimensions: 6”L x 5”W x 3”H (15.6 cm x 12.7 cm x 7.85 cm
Weight: 0.70 lbs (0.3 kg)
Color: Black and clear plastic
Power Input: AC 100-220V 50/60Hz 0.5A (max)
Power Output: DC 5.0V 1.1A per bay (22W max)
Unit Capacity: 4 Units
Indicators: Individual Charging Indicators: Blue LEDs light up dividing clear panels
Compatible Units: CHG 404 WF: WF R1
CHG 404 DW: DLT 400, DLR 400 RCH(Appropriate USB cables can be used with any CHG 404. See Note.)
Warranty: 1 year (90 day warranty on cables and power supply)
Approvals: WEEE, RoHS, CE, FCC, IC
Notes: Accepts USB type A plugs, with a USB-C or with a micro-B plug that can connect to the device to be charged.



Warranty

1 Year
