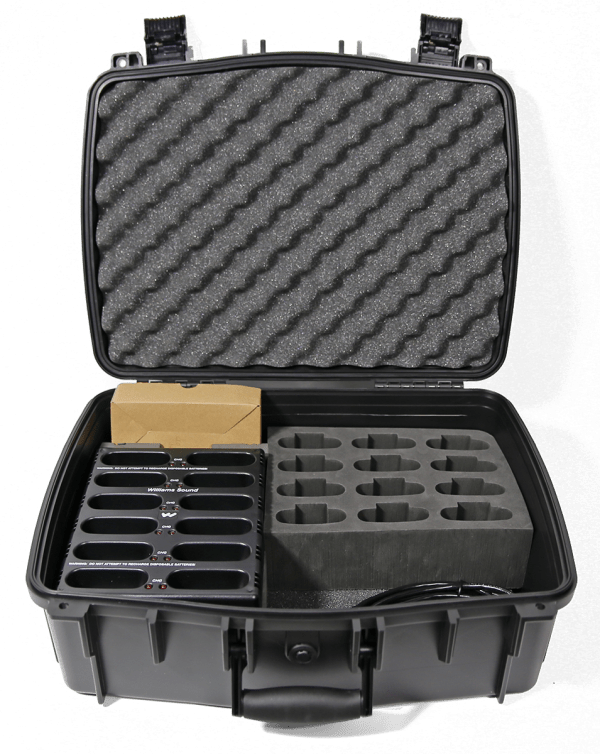

Body-pack charger, 12 bay, with case

CHG 3512 PRO

Charger for body-packs, 12 bay, with case. For up to 12 receivers or transmitters, switching 100-240 VAC power supply. (For use in US). 18-1⁄4″ x 7″ x 14-1⁄8″, 10.7 lbs. Includes Power Supply.

For use with:

PLR BP1 Loop receiver
PPA R37 FM receiver
PPA R38 FM receiver
PPA T46 FM transmitter
WIR RX22-4 Infrared receiver


System Includes

(1) CCS 056S Carry case
(1) 12-bay charger
(1) Power Supply (TFP 037)
(1) Main Power Cord for USA (WLC 004)

CHG 3512 PRO

Charger Only

Size: 18″L x 14″W x 6.75″H (45.7 cm L x 35.5 cm W x 17.1 cm H)
Weight: 10.7 lbs (4.85 kg)
Color: Black ABS
Power Supply Input: 90 – 240 VAC input
Power Supply: TFP 037 Switching AC adapter, 5 VDC – 4A output
Charging Rate: 16 Hour Charge: 140 mA
Pulse/Maintain: 140 mA
Charging Time: 16 hours nominal
Unit Capacity: 12 Units
Indicators: Individual Charging Indicators: Red LEDs. LEDs blink when batteries are charged
Warranty: 1 year (cables and power supply warrantied for 90 days)
Approvals: CE, WEEE, RoHS


Interior Dimensions 13.0” W x 18.0” L x 6.7”H (33 cm W x 46 cm L x 17 cm H)
Exterior Dimensions 15.7” W x 19.7” L x 7.2” H (40 cm W x 50 cm L x 18 cm H)
Lid Inner Depth 1.5” (4 cm)
Bottom Inner Depth 5.2” (13 cm)
Approx. weight (empty) 6.6 lbs (3 kg)
Material Copolymer
Minimum Temperature -40ºF (-40ºC)
Maximum Temperature 160ºF (71.1ºC)
Warranty Limited Lifetime
