System Includes
(1) Digi-Wave 8-Bay Charger – CHG 448 Charging dock
(1) TFP 066 Power Supply

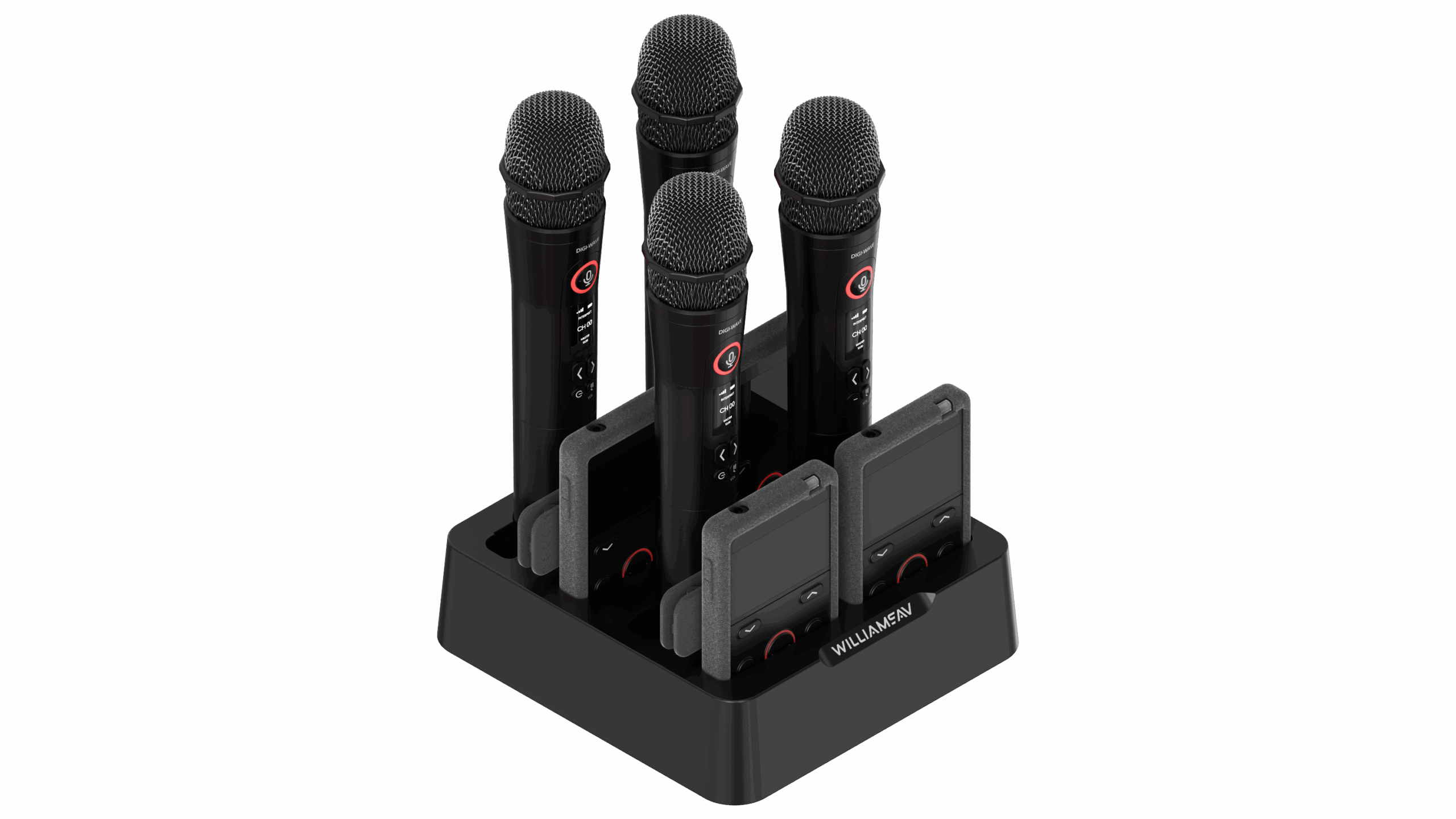

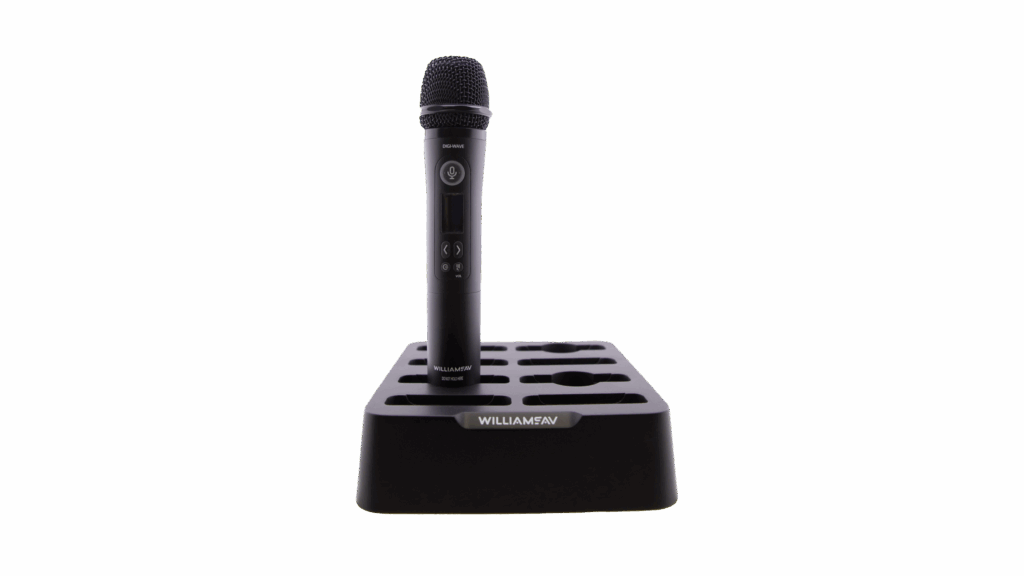

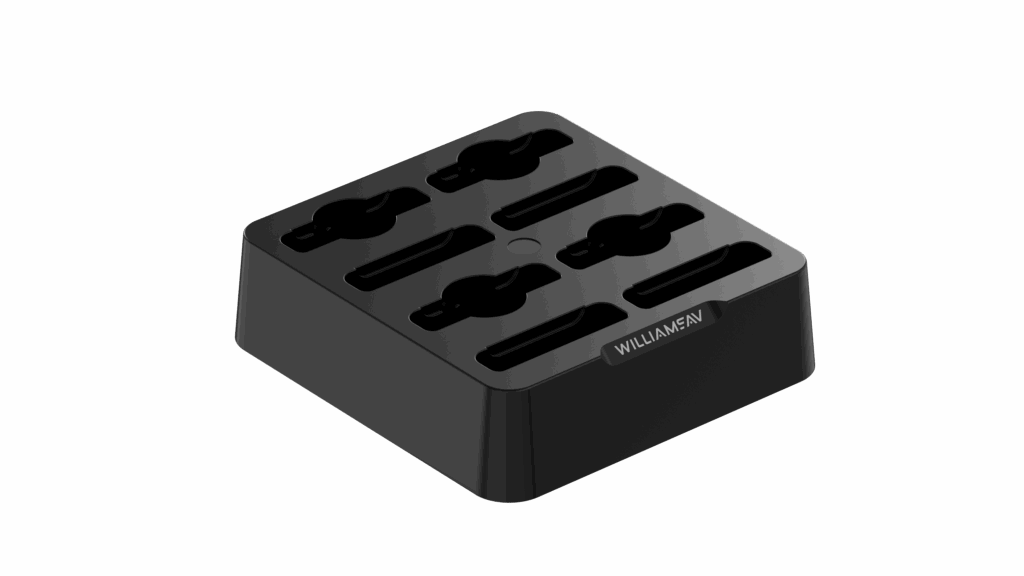

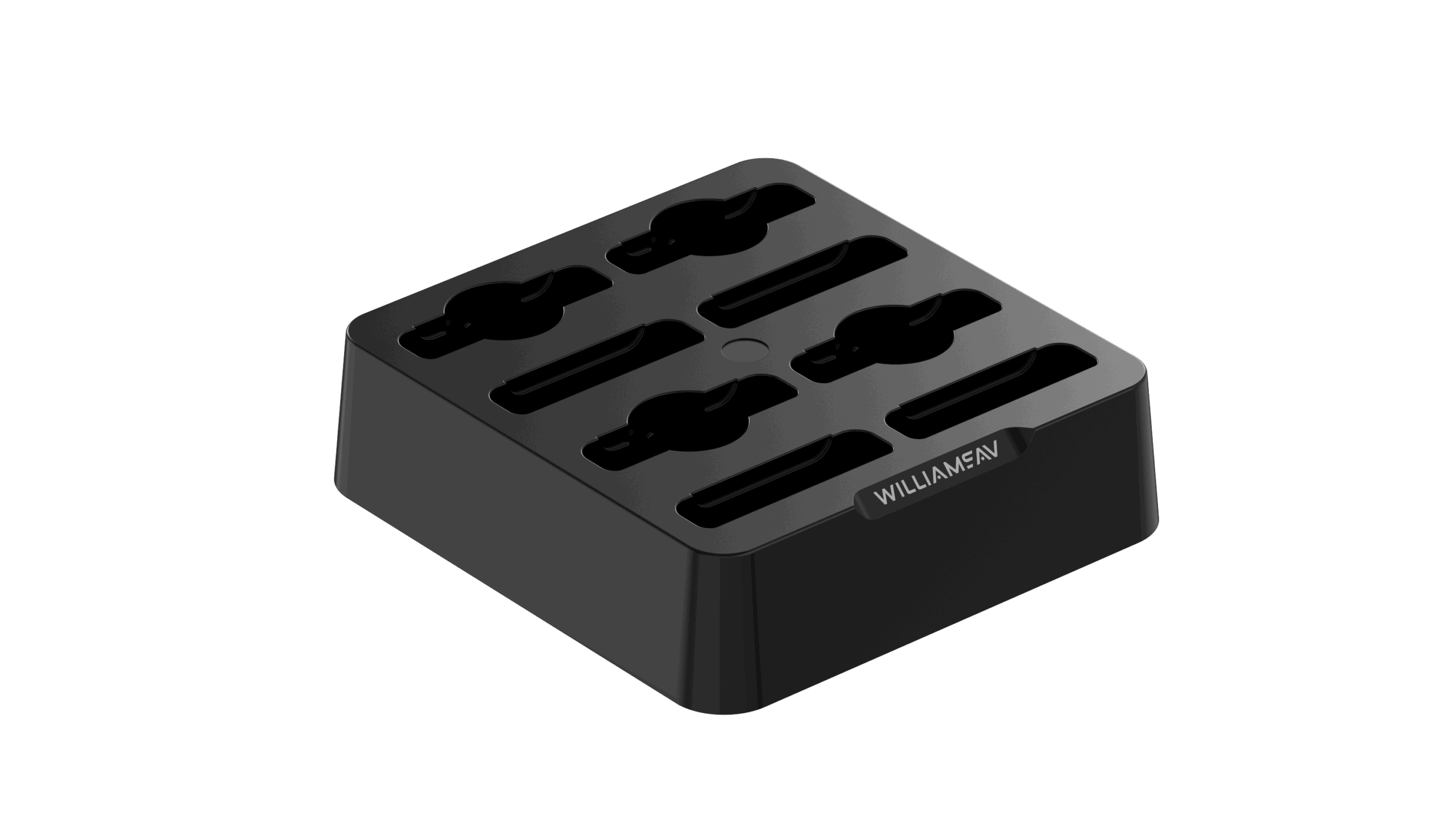

This versatile 8-bay charger is designed to support the Digi-Wave® T410 microphone transceiver, Digi-Wave 400 bodypack transceivers, and rechargeable bodypack receivers. It includes four combination bays that accept either the T410 or 400 Series bodypack units, plus four dedicated bays for charging Digi-Wave 400 transceivers or receivers.
Note: Not compatible with the Digi-Wave DLR 400 ALK (alkaline battery model).
(1) Digi-Wave 8-Bay Charger – CHG 448 Charging dock
(1) TFP 066 Power Supply
| Dimensions: | 7.33″L x 7″W x 2.14″H (18.6 cm L x 17.8 cm W x 5.45 cm H) |
| Weight: | 1.874 lbs (850 g) |
| Enclosure: | Black, ABS plastic with metal base |
| Power Supply Input: | TFP 076, 100-240 VAC input, 2 A max * |
| Power Supply: | Universal DC adapter, 5 VDC – 6A output, center positive |
| Output Rating: | 5 VDC, 0.5 A per bay (8 charging bays) |
| Charging Time: | ~5 hours |
| Unit Capacity: | 8 Units total. 4 bays for DW T410 or DLT 400 or DLR 400 RCH. 4 bays for DLT 400 or DLR 400 RCH only. |
| Compatible Units: | Transceiver: DW T410 or DLT 400 Receiver: DLR 400 RCH |
| Indicators: | Charge status indicators on transceivers or receivers |
| Approvals: | CE, RCM, WEEE, RoHS |
| Warranty: | 2-year (cables and power supply warranty for 90 days) |
* Eight separate CHG 448s (each powered by their own TFP 066 power supply) can be connected to a 15-amp circuit.
2 Years
