Infinium R1 Auracast™ Receiver

Auracast™, Assistive Listening

BA R1

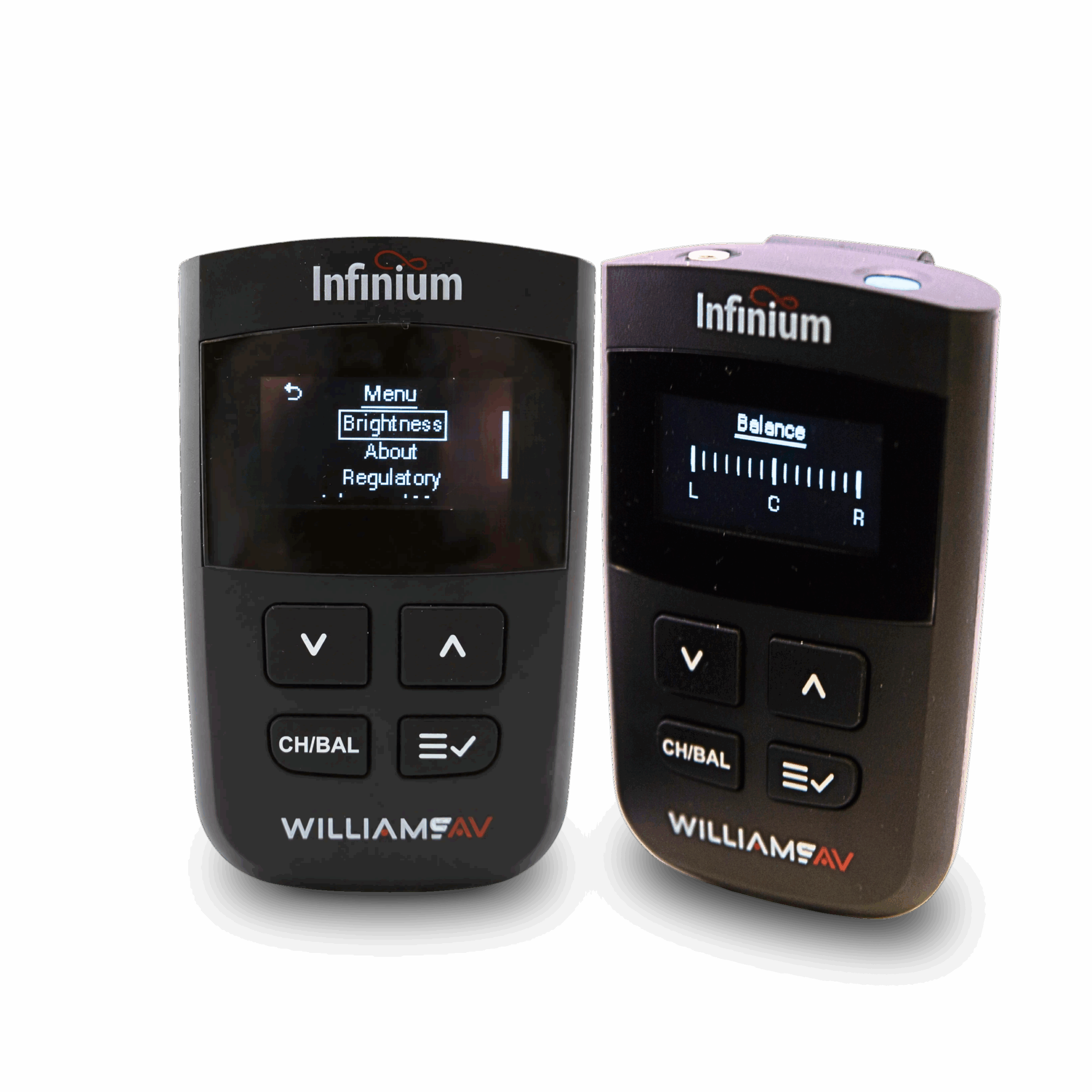

The Infinium® R1 is a TAA-compliant Auracast™ receiver designed for the Infinium broadcast audio system (Infinium CT1). Its ergonomic design features the largest OLED display in its class for enhanced visibility, easy-access buttons with tactile feedback, and balance control to adjust audio delivery to each ear based on the user’s hearing needs.

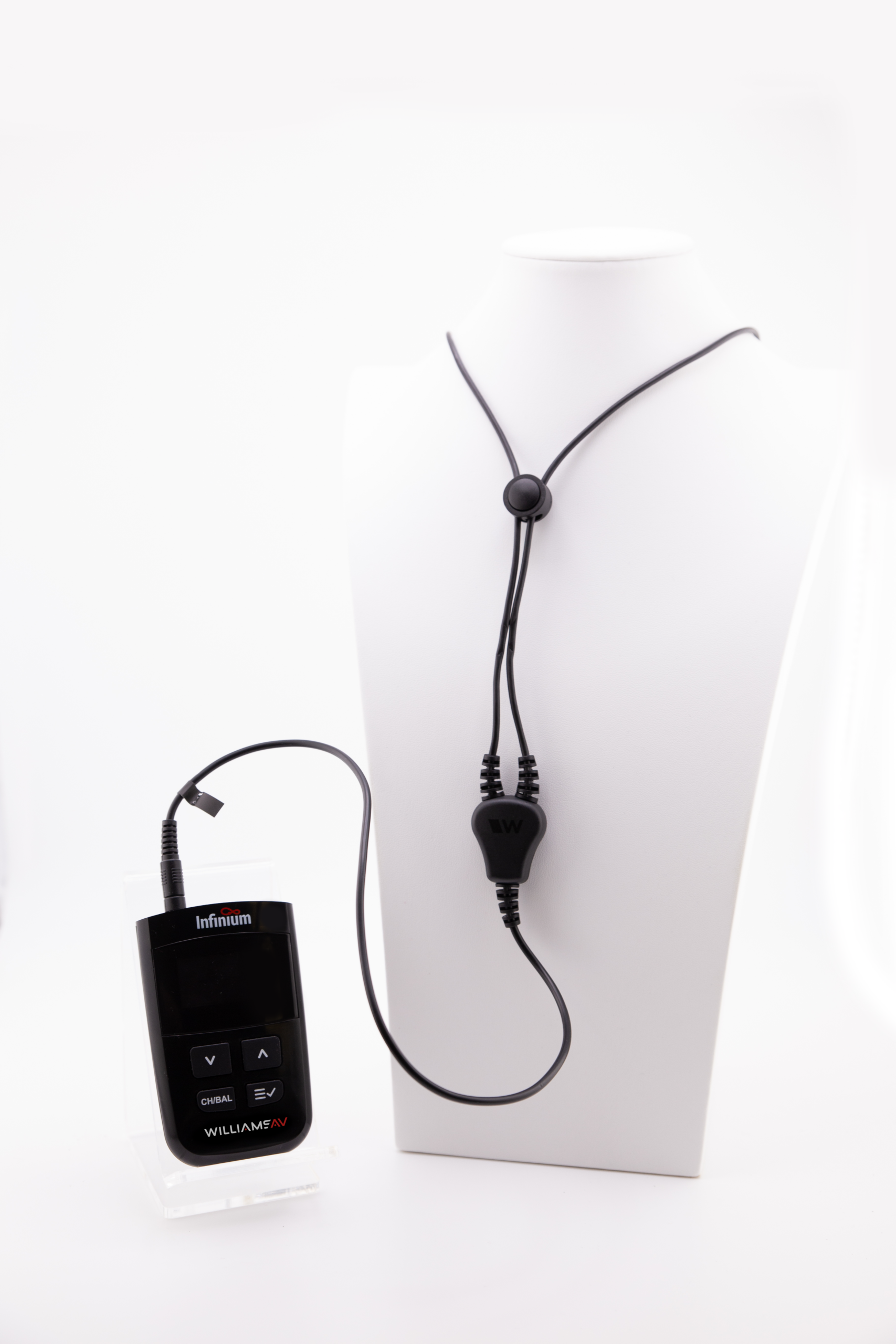

The Infinium R1 supports both secure (private) and open (public) audio modes, giving venues flexibility across a range of applications. Users can listen using headphones or earphones connected via the 3.5 mm stereo jack, or through t-coil-equipped hearing aids via a stereo neck loop connected to the receiver—ensuring accessibility for a wide range of listeners.

The receiver’s rechargeable lithium-ion battery provides reliable, all-day operation and can be charged via USB or a multi-unit charging dock. When deployed as part of a complete Infinium system with receivers, venues can support ADA-compliant assistive listening, creating a more inclusive experience for guests with hearing loss.

Note: Earphones, neck loops, and charging dock sold separately.

System Includes

(1) BA R1 Infinium receiver with Lithium Ion (Li-ion) battery

Features

  • Large screen size – Largest display in its class for improved visibility and intuitive channel selection.
  • Flexible Receiver Tuning – Scan all Auracast streams or only Infinium broadcasts.
  • Balance control – Adjust left/right audio settings to match individual hearing needs for improved speech clarity.
  • Ergonomic design – Comfortable handheld form with large, easy-access buttons with tactile feedback.
  • Flexible broadcast access – Supports secure (private) and open (public) audio modes.
  • Versatile connectivity – Compatible with neckloops, headphones, and earphones.
  • Extended battery life – Rechargeable lithium-ion battery provides reliable, all-day operation.
  • Convenient charging options – Charge via USB or multi-unit charging docks.

BA R1

Receiver

Dimensions 3.9″ x 2.48″ x 0.85″
99 x 63 x 21.6 mm
Dimensions with Belt Clip 3.9″ x 2.48″ x 1.19″
99 x 63 x 30.2 mm
Weight 3.8 oz (107.7 g)
Shipping Weight 4.5 oz (127.6 g)
Color Black
Battery Type Lithium Ion (Li-ion) Camera Style Rechargeable Battery; Field Replaceable
Battery Size 3.7 Vdc, 1200 mAh
Battery Life > 20 hours
Temperature Range – Operating +14° F to +104° F (-10° C to 40° C)
Temperature Range – Storage -4° F to +122° F (-20° C to +50° C)
Temperature Range – Charging +41° F to +114° F (+5° C to 40° C)
Charging Connections Dual contacts for use with Infinium Drop In Chargers or USB-C Connector
Button Controls Power, Increment, Decrement, CH/BAL, Menu/Select
Display OLED display 1.38 x o.69 in (35.1 x 17.5 mm),  Diagonal 1.54″ (39.2 mm)
Belt Clip Removable
Audio Output Connector 3.5 mm stereo jack for wired stereo or mono headphones, earphones or neckloops
Approvals FCC, RoHS3, WEEE, Industry Canada/ISED, CE,  UKCA, RCM, CB Scheme
Warranty 2-years parts and labor
USB-C Connection Power/Charge (5V @~500 mA)
Firmware Updates

Warranty

2 Years

How to Update Firmware on your Infinium™ BAR1

Infinium™ Receiver Tutorial

1. How do you use an Auracast receiver like the Infinium R1?

Users can listen to Auracast audio with headphones or earphones connected to the receiver via the 3.5 mm stereo jack, or through t-coil-equipped hearing aids using a compatible stereo neck loop connected to the receiver.

2. Can you use hearing aids with the Infinium R1 Auracast receiver?

Yes. The Infinium R1 works with t-coil-enabled hearing aids when used with a stereo neck loop connected to the receiver, providing a clear and accessible assistive listening experience.

3. What is the difference between open and secure audio on an Auracast receiver?

Open (public) audio allows anyone to access an Auracast broadcast, while secure (private) audio requires a PIN for access, enabling controlled or restricted listening.

4. How long does the Infinium R1 receiver battery last?

The Infinium R1 is designed for reliable, all-day operation on a single charge, supporting full-day events and continuous venue use.

5. How do you charge the Infinium R1 receiver?

The receiver can be charged using a standard USB connection or with an optional multi-unit charging dock for efficient charging and storage.

6. Does the Infinium R1 help meet ADA assistive listening requirements?

Yes. When used as part of a complete Infinium broadcast-audio system with receivers, the Infinium R1 supports ADA-compliant assistive listening, helping venues create a more inclusive experience.
