Portable Infrared Courtroom System

IR Systems

IR SY6

A portable system specifically for courtrooms featuring the IR T2 infrared transmitter.

The IR T2 is a commercial-grade, medium-area infrared transmitter. Its sleek, compact footprint is ideal for assistive listening and language interpretation in commercial spaces such as conference rooms, assisted living facilities, small cinema/theaters, classrooms, and courtrooms. The new IR T2 infrared transmitter offers 50 percent greater coverage than the previous IR device (WIR TX75) and new control system readiness — all at a more affordable price. With a significantly wider coverage pattern and more power, there is no need for the additional expense of secondary units.

System Includes

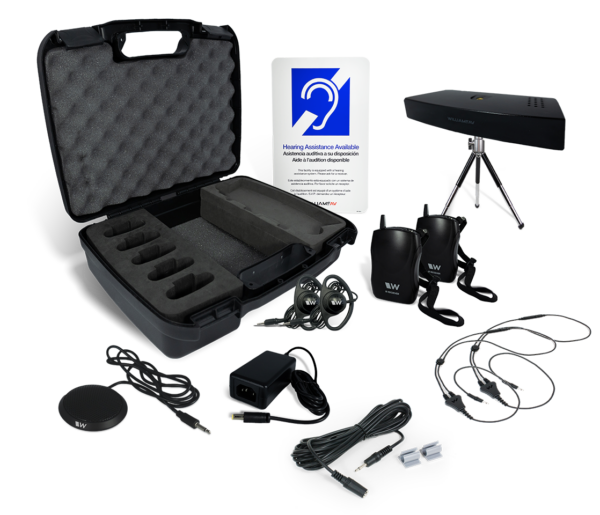

(1) IR T2 Medium-area Infrared Transmitter
(2) WIR RX22-4 Four-channel Infrared Receivers
(1) MIC 149 Omnidirectional Conference Microphone
(2) EAR 022 Surround Earphones
(2) NKL 001 Neckloops
(2) BAT 001-2 AA Alkaline Batteries
(1) IDP 008 ADA Wall Plaque
(1) CCS 029 Carry Case
(1) STD 007 Table-top Tripod
(1) TFP 061 Power Supply
(1) WCA 135 WC 12-foot Mono Cable

IR SY6

Dimensions:

9.0″ W (229 mm) x 3.8″ D (97 mm) x 1.4″ H (36 mm)

Weight:

0.84 lb. (0.38 kg)

Color:

Black

Power Supply:

TFP 061 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output

DC Power Input:

2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive

Power Indicator:

Green LED

Sleep/Power Save Mode:

Shuts off carrier when no audio present for 12 minutes

Modulation:

FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis

Transmit Frequencies:

2.3, 2.8, 3.3, 3.8 MHz

Coverage Area:

Up to 18,000 sq. ft (1,673 sq. m) in single-channel mode with the RX22-4 receiver

Audio Inputs:

Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio

Audio Indicators:

One yellow LED per channel. Lights up and stay on steady with minimum audio level.

Signal-to-Noise Ratio:

70 dB (line input)

Frequency Response:

 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs)
125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)

Operating Requirements:

32°-122°F (0-50°C)

Mounting Kit:

Wall or Ceiling mount: BKT 024 Omnidirectional mount

Compatible Receivers:

WIR RX22-4, WIR RX18, IR R1

Warranty:

5 years

Approvals/Regulatory Compliance:

CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE



MIC 149

Type Electret
Size 60mm diameter x 16mm height
Color Black
Plug 3.5mm mono
Cord 39” (99 cm)
Output Impedance 1500 Ω
Polar Pattern Omnidirectional
Bias Power Requirement 1.0-10VDC
Sensitivity -40 dB ± 3 dB
Warranty 90 days

IR T2 architectural and engineering specifications

Architectural/Consultant Specs The Infrared Transmitter shall consist of an all-in-one modulator and emitter operating on 2.3 MHz and/or 2.8 MHz (or 3.3 and/or 3.8 MHz). The carrier frequency shall use 50 kHz deviation and 50 µS pre-emphasis. The transmitter will operate in 2-channel mode on 2.3 and 2.8 or on 3.3 and 3.8 MHz. The transmitter will operate in single-channel mode on 2.3, 2.8, 3.3, or 3.8 MHz. The transmitter shall have coverage up to 18,000 ft2 (1,672 m2) with the WIR RX22-4 receiver in single-channel mode or 11,500 ft2. (1,068 m2) with the RX20 receiver in dual-channel mode. The transmitter shall be housed in a heavy-duty black plastic enclosure with a metal plate base and a durable infrared transparent front lens. It shall be convection-cooled without fans and have a sleep/power save mode that shuts off the IR when no audio is present for 12 minutes. The Transmitter shall have a signal-to-noise ratio of 70 dB or better and have an audio frequency response of 95 Hz to 17.6Hz, -3 dB re 1 kHz (line inputs), and 125 Hz to 17.0 kHz, -3 dB re 1 kHz (microphone input). The Transmitter includes an omnidirectional mounting bracket for various permanent installations. Each channel shall have a line-level Phoenix-style connector input, and each channel shall have an audio input-level LED. There shall be a single 3.5 mm microphone input with gain control, and the mic input shall have a channel selector switch. The transmitter shall have a switch to turn off all indicator LEDs if pressed and held and change the carrier frequency set if pressed and held. The transmitter shall be powered by a 48 VDC universal power supply, 50-60 Hz, 100-240 VAC input, 18 W with optional Power over Ethernet (PoE) support. The transmitter shall have RS-232 monitoring and control available for third-party controllers. The transmitter shall be covered by a five-year parts and labor warranty and 90 days on accessories. The Williams AV SoundPlus Infrared IR-T2 is specified.

IR T2

Dimensions:

9.0" W (229 mm) x 3.8" D (97 mm) x 1.4" H (36 mm)

Weight:

0.84 lb. (0.38 kg)

Color:

Black

Power Supply:

TFP 057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output

DC Power Input:

2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive

Power Indicator:

Green LED

Sleep/Power Save Mode:

Shuts off IR when no audio present for 12 minutes

Modulation:

FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis

Baseband Frequencies:

2.3, 2.8, 3.3, 3.8 MHz

Coverage Area:

Up to 18,000 sq. ft (1,673 sq. m) in single-channel mode with the RX22-4 receiver Up to 11,500 sq. ft (1,068 sq. m) with the RX20 receiver
Microphone gain adjust: Rotary 10 dB range
Microphone channel switch: Selects microphone input to Ch. A or Ch. B
Microphone input: 3.5 mm, stereo jack with signal and bias connected to tip, electret microphone compatible (6 VDC bias supply with 2.7 k ohm series resistor)

Audio Inputs:

Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio

Audio Indicators:

One yellow LED per channel. Lights up and stay on steady with minimum audio level.

Signal-to-Noise Ratio:

70 dB (line input)

Frequency Response:

 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs) 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)

Operating Requirements:

32°-122°F (0-50°C)

Mounting Kit:

Wall or Ceiling mount: BKT 024 Omnidirectional mount

Compatible Receivers:

WIR RX22-4, IR RX20

Warranty:

5-year warranty against component failure and manufacturing defects. See Full Warranty statement on the website for details.

Approvals/Regulatory Compliance:

CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE


WIR RX22-4N architectural and engineering specifications

  • The receiver shall be a body-pack type with IR detector lens behind face of the unit.
  • The unit shall have a lanyard for hands-free operation.
  • The receiver shall have a rotary-type volume control.
  • The receiver shall operate for 60 hours with two AA alkaline batteries and for 30 hours per charge with NiMH AA batteries.
  • The receiver shall be charged without battery removal via charger contacts in the case. A drop-in charger accessory shall recharge the batteries in 16 hours when used with CHG 3512 charger.
  • The receiver shall be housed in an impact resistant plastic case with a hinged battery door that does not separate from the receiver.
  • The receiver shall receive 2.3 MHz, 2.8 MHz, 3.3 MHz or 3.8 MHz modulated IR signals with 50 µS de-emphasis. The receiver shall have a 3.5 mm stereo phone jack and accommodate low-impedance mono or stereo earphones and headphones.
  • The receiver shall accommodate neckloop telecoil couplers.
  • The receiver shall provide 125 dB SSPL90 output with HED 021 headphone and 110 dB SSPL90 with EAR 013 earbud-type earphone.
  • The system electrical frequency response shall be 25 Hz to 16 kHz, +1, -3 dB and the S/N ratio shall be 60 dB.
  • The receiver shall have CE, FCC RoHS and WEEE approval. The receiver shall be covered by a five-year parts and labor warranty, excluding earphones, headphones, batteries and chargers.
  • The receiver shall be the Williams AV model WIR RX22-4.

WIR RX22-4N

Receiver Style: Body-Pack, dual-lens detector, lanyard
Size: 4.1" L x 2.85" W x 1.2" H (104.1 mm x 72.4 mm x 30.4 mm)
Weight: 4.5 oz (127 g) with batteries
Color and Material: Black
Lanyard: 3 ft (0.91 m), allows receiver to be worn around the neck
Operating Temperature: -10° C to +50° C
Battery Type: 2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Life: Alkaline: 60 hours, NiMH: 30 hours/charge
Battery Drain: 25 mA, nominal
Charging Contacts: For use only with CHG 3512
Carrier Frequency: Channel 1: 2.3 MHz, Channel 2: 2.8 MHz Channel 3: 3.3 MHz, Channel 4: 3.8 MHz
De-Emphasis: 50 uS
FM Deviation: ±50 kHz
Signal-to-Noise Ratio: 60 dB min.
Squelch: Receiver squelches (mutes) at 28 dB S/N ratio
Frequency Response: 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
Total Harmonic Distortion: Less than 1%, electrical response
Controls: ON/OFF/VOLUME: combination thumbwheel knob Channel Selector: four-position rotary switch
Indicators: Red LED “ON" indicator, flashes to indicate Low battery
Audio Output Jacks: 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
Audio Output Power: 15 mW max at 32 Ω
Acoustic Output: 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
Sensitivity: Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
Approvals: CE, FCC, RoHS, WEEE
Warranty: 5 years on receiver, 90 days on accessories
Compatible Headphones/Earphones: Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001
