Small Area Infrared Transmitter

IR T1

The IR T1 is a two-channel small area infrared transmitter combining infrared modulator and emitter technology into a single mountable enclosure—which reduces operating costs, eliminates the need for rack space and eases set-up.

The IR T1 is ideal for high quality audio programs such as music, television audio, and audio description. The IR T1 will accept any line level stereo audio input. Infrared receivers detect the transmission and convert the light signals back into audio signals. The IR T1 operating frequencies (2.3/2.8 MHz) minimize high efficiency lighting interference.

No FCC license or radio approval is required with this equipment. It can be used anywhere in the world.

Description

The IR T1 is a two-channel small area infrared transmitter combining infrared modulator and emitter technology into a single mountable enclosure—which reduces operating costs, eliminates the need for rack space and eases set-up.

The IR T1 is ideal for high quality audio programs such as music, television audio, and audio description. The IR T1 will accept any line level stereo audio input. Infrared receivers detect the transmission and convert the light signals back into audio signals. The IR T1 operating frequencies (2.3/2.8 MHz) minimize high efficiency lighting interference.

No FCC license or radio approval is required with this equipment. It can be used anywhere in the world.

System Includes

(1) IR T1 small area infrared transmitter

(1) TFP 055 power supply

(1) WCA 055 6′ 3.5 mm male-to-male, stereo audio cable

(1) WCA 106 – 6′ USB micro cable (USB 2.0 to USB micro)

(1) WCA 124 – adapter cable (3.5mm F to RCA)

Features

  • Commercial-quality design
  • High-efficiency LEDs[nbsp]display power status and audio input
  • Tripod mount or optional flat panel[nbsp]TV[nbsp]mounting bracket
  • Power with[nbsp]A/C[nbsp]power supply or USB (from TV)
  • Plug-and-play install with 3.5MM audio input 1- or 2-channel operation (2.3 and 2.8)

IR T1

Dimensions:

Width: 5.65”(14.4 cm), Depth: 3.65”(9.3 cm), Height: 1.15”(2.9 cm)

Weight:

8.3 oz (235 g)

Color:

Black

Power Supply:

TFP 055 – 100-240VAC 50/60Hz Input; 5VDC, 1A USB Output, Universal Supply with international adapters

Other USB Power Supply (must be at least 5VDC, 0.2A)

Power Cable:

USB to micro USB cable

DC Power Input:

Micro USB connector, 5VDC, 0.2A

Power Indicator:

Green LED

Sleep/Power Save Mode:

Shuts off carrier when no audio present for 12 minutes

Modulation:

FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis

Carrier Frequencies:

2.3MHz (Ch 1) and 2.8MHz (Ch 2)

Default at power on = carriers off. Carriers are automatically enabled upon presence of audio.

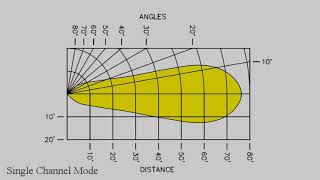

Coverage Area:

1,300 sq. ft (120 sq. m.) with the WIR RX22-4
1000 sq. ft. (93 sq. m.) with the IR RX20

Audio Inputs:

3.5mm stereo line level input jack, Ch 1 connected to tip, Ch 2 connected to ring, GND connected to sleeve

Audio Indicators:

One Yellow LED per channel, lights up and stays on steady with minimum audio level.

Signal-to-Noise Ratio:

70 dB at onset of limiting

Frequency Response:

100 – 12,000 Hz

Operating Requirements:

32°-122°F (0-50°C)

Mounting Kit:

Optional: STD 008 TV Top Shelf Mounting Kit

Optional: BKT 024 Omnidirectional mount for wall or ceiling mounting

Compatible Receivers:

WIR RX22-4, IR RX20

Warranty:

2 years

Approvals/Regulatory Compliance:

CE, RCM, FCC, Industry Canada, PSE, CUL, WEEE, RoHS, CB Scheme



Warranty

2 Years
