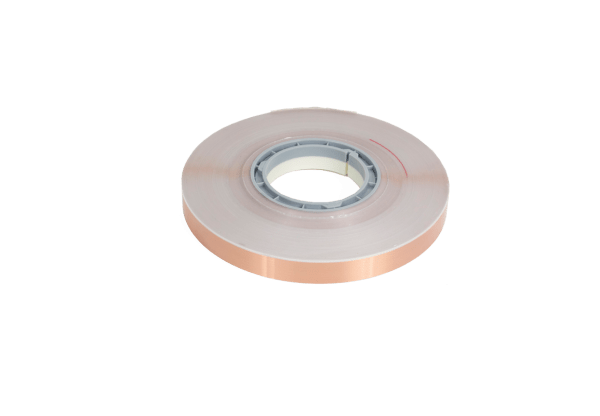

Power loop wire flat 3/4″ (500 ft)

PLW F500

Power loop wire, flat copper, 3/4″ Wide, 500 ft (152.4 m) spool. 22mm x 0.17mm.

PLW F500

Length 500 ft (152.4 m)
Width OD: 22 mm (with insulation)

ID: 19 mm (bare copper)

Thickness OD: 0.17 mm (with insulation)

ID: 0.1 mm (bare copper)

Cross Sectional Area (Bare Copper) 1.9mm2
Spool Dimensions 8-1/8” W x ¾” H
(20.6 cm W x 1.9 cm H)
Spool Weight 6.5 lbs (2.9 kg)
Color/Material Copper with Mylar (polyester) encapsulation


90 Days
