Wireless Access Point

Accessories, Antenna / Adapters / Cables

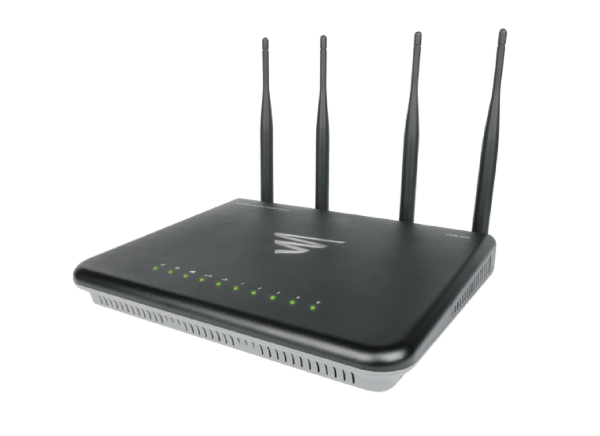

WF WR10

Wireless Access Point for WaveCAST single-channel transmitters running in Unicast Mode only, supporting up to 45 users. Not for use with Multicast. This device is only available in certain pre-packaged systems.

This device is only available in North America.

For additional product information, please contact Williams AV.

WF WR10

Dimensions	9.3” x 7” x 1.65” (236cm x 178cm x 42cm)
Weight	1.8 lbs. (0.82 kg)
Standards Compliance	2.4GHz: IEEE802.11n, IEEE802.11g, IEEE 802.11b; 5.xGHz: IEEE 802.11n, IEEE 802.11a; 802.11ac IEEE802.3, IEEE802.3u, IEEE802.3ab
Interface	One 10/100/1000M WAN Port (Auto MDI/MDIX); Four 10/100/1000M LAN Ports (Auto MDI/MDIX); One USB 3.0 Port
Antenna	Four 5dBi Detachable Omni-Directional Antennas
Power	Input: 12VDC @ 3A
Max Power Consumption	35W
Wireless Speed	2.4GHz: 1000Mbps; 5GHz: 2167Mbps
Frequency	Concurrent 2.4GHz and 5GHz
Wireless Security	WPA/WPA2-PSK, WPA/WPA2, AES
Approvals	CE, FCC, RoHS, IC, RCM
Warranty	Three (3) year, parts and labor
