12-Person Digi-Wave Tour Guide System (Rechargeable)

DWS TGS VIP 12 400

This portable, wireless intercom system allows 12 people to talk and listen to each other wirelessly without interference. Its use of a frequency-hopping algorithm ensures secure communication. Its portability makes it the ideal tour guide solution for venues requiring two-way communication.

5 Year Warranty Badge
Visit the Warranty and Registration page for details

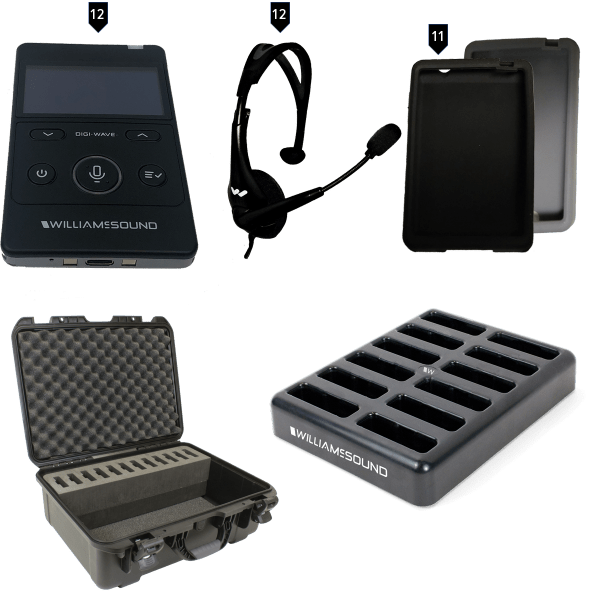

System Includes

(12) DLT 400 transceivers
(12) MIC 144 headset microphones
(1) CHG 412 12-bay charger
(1) CCS 042 DW system carry case
(1) CCS 061 GR grey silicone skin
(11) CCS 061 BK black silicone skins

How It Works

/wp-content/uploads/2020/03/digiwave_how_it_works_tour_guide_bus-1.png

CHG 412

Dimensions: 9"L x 7"W x 1.5"H (23 cm L x 17.8 cm W x 3.8 cm H)
Weight: 1.8 lbs (845 g)
Enclosure: Black, ABS plastic with metal base
Power Supply Input: TFP 066, 90-240 VAC input, 1.5 A max *
Power Supply: Universal DC adapter, 5 VDC - 6A output, center positive
Output Rating: 5 VDC, 0.5 A per bay (12 charging bays)
Charging Time: ~5 hours
Unit Capacity: 12 Units
Compatible Units: Transceiver: DLT 400 Receiver: DLR 400 RCH
Indicators: Charge status indicators on DLT or DLR
Approvals: CE, FCC, WEEE, RoHS, CB
Warranty: 2-year (cables and power supply warranty for 90 days)
* Eight separate CHG 412s (each powered by their own TFP 066 power supply) can be connected to a 15-amp circuit.

DLT 400

Dimensions 4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
Weight 3.3 oz (94 g) including battery
Color Black/Silver (Front/Back)
Case Material Black ABS plastic
Battery type Lithium Polymer with smart charge built into transceiver; 1800 mAH
Battery life Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
Power Save Auto Sleep Mode after 5 minutes if no RF signal from compatible devices (Power can be turned off in Advanced Settings if desired)
Charge time 5 hrs. approx.
System Voltages OLED 14VDC; RF 5VDC; Logic 3.3 VDC
Operating frequencies 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
Audio Frequency response (-3dB Level)
Interpretation, Tour, Hearing Asst (≤4 mics): 100 – 11,500 Hz
Other Modes: 100 – 7,200 Hz
SNR 73 dB (A-weighted, default Rx volume with mic input )
THD 0.1 % (Default Volume, 1kHz)
Microphone input Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
Line Input USB-C, Adjustable level
Headphone Output 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
Audio Output Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level
Range Up to 900 ft (274 m) (depending upon environmental conditions)
Modulation FSK
RF Output 19 dBm Max
Security 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
Side tone -6 dB below volume, tone variation (Off, Low and High settings available)
Indicators OLED
LEDs Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
Charging Connectors USB-C; Two contacts for use with CHG 412
Compatible Receiver DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
Operating Temperature Range 14º to 113ºF (-10º to 45ºC)
Approvals FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
Warranty 5 years on parts and labor with product registration; 2 years standard without registration. Internal batteries are covered for 1 year and accessories for 90 days, regardless of registration. Visit the Warranty and Registration page for details.


EAR 022

Style Around-ear speaker
Plug 3.5mm mono
Cord 39"
Driver Size 23 mm
Nominal Impedance 32Ω
Freq. Response 20 - 20kHz
Weight 15g
Max Power Input 30 mW
Sensitivity 118 dB @ 1kHz


Warranty

5 years with registration - 2 years standard (90 days for accessories)

No Firmware Found

What is the DWS TGS VIP 12 400?
It’s a portable, rechargeable two-way wireless system for 12 people. Unlike a standard tour kit, where guests only listen, every person gets a DLT 400 transceiver and headset mic, so everyone can both talk and listen. It’s a good fit for VIP or small-group tours where guests ask questions along the way, and for any team that needs hands-free two-way communication.

What’s included in the kit?

  • 12 DLT 400 transceivers
  • 12 MIC 144 headset microphones
  • 1 CHG 412 12-bay charger
  • 1 CCS 042 DW system carry case
  • 1 CCS 061 GR silicone skin (grey)
  • 11 CCS 061 BK silicone skins (black)

How is this different from a standard Digi-Wave tour kit?
Standard tour kits give the guide one transceiver and give guests receive-only receivers, so guests can only listen. In this kit, all 12 units are DLT 400 transceivers, so guests can respond, ask questions and talk with the guide and each other.

How many people can talk at the same time?
Up to six people can talk at once. Everyone else in the group still hears the conversation and can join in when a talker drops off.

How long does the battery last?
Each DLT 400 has a built-in 1800 mAh lithium-polymer battery that lasts up to 16 hours of talk time per charge. A full charge takes about 5 hours.

How do I charge the system?
The CHG 412 has 12 bays, enough to charge all 12 transceivers at the same time. Each docked unit shows its own charge status. You can also charge any single unit with a USB-C cable.

What is the range?
Up to 900 ft (274 m). Walls, crowds and other 2.4 GHz devices can shorten it.

Can I add more people?
Yes. Add more DLT 400 transceivers for people who need to talk. For people who only need to listen, add DLR 400 RCH or DLR 400 ALK receivers. Digi-Wave 400 supports an unlimited number of listeners.

Can I run more than one group at the same time?
Yes. Each group’s units are set to their own group, so groups in the same building don’t hear each other.

Is the audio secure?
Yes. The system uses digital frequency-hopping spread spectrum in the 2.4 GHz band, with 87-bit and 128-bit encryption, an encryption PIN and a settings lock, so outsiders with other equipment can’t listen in.

Does it need a license or frequency coordination?
No. It runs in the license-free 2.4 GHz ISM band. It is approved for FCC, Industry Canada, CE, RCM, ANATEL, KC and Giteki markets.

Can I use a different microphone or headset?
Yes. Each DLT 400 has a built-in mic, a 3.5 mm mic jack with adjustable gain and a 3.5 mm headphone jack. Compatible mics include the MIC 044 headset, the MIC 054 lapel mic, the MIC 014-R plug-mount mic and the MIC 068 heavy-duty dual-muff headset for high-noise areas. Williams AV earphones, headphones and the NKL 001 neckloop for T-coil hearing aid users also work.

Can I play recorded audio or music through the system?
Yes. The DLT 400 has an adjustable line input over USB-C, so you can feed in audio from a phone, laptop or mixer.

Is it compatible with my existing Digi-Wave equipment?
The DLT 400 works with DLR 400 RCH and DLR 400 ALK receivers, and it works with DLT 300 and DLR 360 units with some limitations.

Is there a user manual?
Yes. You can download the Digi-Wave 400 Series user manual in English and Spanish from the product page, along with the CHG 412 charger manual, a security features guide and a Digi-Wave comparison chart.

What happens if I forget to turn a unit off?
Units go to sleep on their own after 5 minutes without a signal, which saves battery.

What’s the warranty?
The DLT 400 transceivers are covered for 5 years on parts and labor if you register the product (2 years if you don’t). Internal batteries are covered for 1 year and accessories for 90 days. The CHG 412 charger has a 2-year warranty (90 days on cables and power supply). Full terms are at williamsav.com/support/warranty-product-registration.

How do I get pricing?
Click “Request More Info” on the product page and the Williams AV team will follow up with a quote.

Design & Consultant Specs
