The InfiniumĀ® Flex System provides everything needed to deploy a flexible assistive listening solution in public venues. Building on the proven combination of the FM+ T55CD transmitter and Infinium CT1 Controller, the system also includes FM receivers, earphones, and neckloops to support guests from day one.
The FM+ T55CD delivers audio over both FM and Wi-Fi, allowing guests to listen through venue-provided FM receivers or the free WaveCASTĀ® app on their smartphone. The Infinium CT1 adds Auracast audio, enabling direct streaming to compatible hearing aids, cochlear implants, earbuds, headphones, smartphones, and Infinium receivers.
By supporting FM, Wi-Fi, and Auracast technologies, the Infinium Flex System accommodates a wide range of listening preferences and accessibility needs. Guests can choose the listening method that works best for them, whether that means using a venue-provided receiver or a compatible personal device.
Unlike the Infinium Flex Bundle, the Flex System includes four FM handheld receivers, four surround earphones, and two neckloops, helping venues begin providing assistive listening services immediately.
Both systems include DanteĀ® networking for straightforward integration with modern AV environments. The included dual rack-mount kit provides a clean, professional installation within a single rack unit.
The Infinium Flex System is ideal for theaters, performing arts centers, houses of worship, conference centers, lecture halls, universities, government facilities, transportation hubs, and other public venues seeking a complete assistive listening solution.
For complete specifications and feature details, visit the FM+ T55C D and Infinium CT1 product pages.
Receivers are sold separately.
BA-SYS5
Infinium Auracast Controller (BA-C1)
| Dimensions |
8.45″ W x 8.25″ D x 1.72″H (21.5 cm x 21 cm x 4.4 cm) |
| Weight |
2.3 lbs (1.04 kg) |
| Color |
Black |
| Installation Configurations |
Rack Mount: Standard 19ā Rack, one EIA rack space high, 1/2 space wide
1ā2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
Shelf: Can sit on shelf, table, podium, etc. |
| Temperature Range – Operating |
+32Ā° F to +122Ā° F (0Ā° C to 50Ā° C) |
| Temperature Range – Storage |
-4Ā° F to +158Ā° F (-20Ā° C to 70Ā° C) |
| Power Supply |
Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| Power Button |
Push On/Push Off latching power button. |
| Ethernet Control Port |
(1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T |
| Front Panel Display |
3.12ā High Resolution OLED Direct Entry UI with button entry programming and status indicator selections. |
| Dante |
(1x) RJ-45 jack. |
| Power Supply |
Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| PoE Power Out |
PoE |
| Compliance Approvals |
FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme |
| Warranty |
2-year parts and labor |
Infinium Transmitter (BA-T1)
| Dimensions |
4.7ā³ W x 5.0ā³ D x 1.19ā³H ( 119 mm x 127 mm x 30 mm) |
| Weight |
0.4 lbs (0.18 kg) |
| Color |
White |
| Installation Configurations |
Ceiling Mount, Wall Mount, Shelf |
| Temperature Range – Operating |
+32Ā° F to +122Ā° F (0Ā° C to 50Ā° C)
|
| Temperature Range – Storage |
-4Ā° F to +158Ā° F (-20Ā° C to 70Ā° C) |
| Power |
PoE (Input) |
| Connection |
RJ45 (1x) with audio, control and PoE |
| Power ON Indicator |
Programmable LED |
| Transmitter Power Output |
Programmable |
| Compliance Approvals |
FCC, RoHS3, WEEE, Industry Canada/ISED, CE,Ā UKCA, RCM, CB Scheme, Gitecki (Japan) |
| Warranty |
2-year parts and labor |
Cable
| Ethernet Cable |
10′ – CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant |
| Warranty |
90 Days |
FM+ C | FM and Wi-Fi Transmitter with Dante (FM T55C D)
NOTE: The FCC requires this device to be used with approved, FCC 15.203 compliant antennas and be professionally installed. Refer to Williams AVās Antenna Selection Install Guide for compliant antennas for this product.
The FM+ C with Dante connects to the installation location’s Wi-Fi Network. It does not provide a network on its own. The Wi-Fi network will need to be installed and established before the FM+ C with Dante can be used.
Audio Inputs (1x) Combination 3-pin XLR, 1/4″ (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power. Optional RJ-45 Dante Input (“D” models only).
| Dimensions |
8.45″ W x 8.25″ D x 1.72″H (21.5 cm x 21 cm x 4.4 cm) |
| Weight |
Transmitter: 3.2 lbs (1.45 kg) |
| Color |
Black |
| Rack Mount |
Standard 19ā Rack, one EIA rack space high, 1/2 space wide
1ā2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits |
| Power Supply |
Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| Power ON Indicator |
Push On/Push Off latching power button with backlight. Green backlight indicates power ON, backlight off indicates power OFF. |
| Temperature Range |
Operating: +32Ā° F to +122Ā° F (0Ā° C to 50Ā° C); Storage: -4Ā° F to +158Ā° F (-20Ā° C to 70Ā° C) |
| User Interface |
1. 3.12ā High Resolution OLED display with selections via buttons. 2. Hosted Web page. 3. Telnet commands over ethernet (see our WaveCAST and FM+ Programmers Guide” for available commands and protocol). |
| Dante |
(1x) RJ-45 jack. Only available on FM T55C D |
| Ethernet |
RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address. RJ-45 jack used for web page and streaming audio out. An external Router/DHCP Server is required to stream audio to receiving devices. |
| RF Section |
| Operating Frequencies |
72.1-75.9 MHz , 17 wideband channels (selectable) |
| Frequency Accuracy |
Ā± 2 ppm stability, 0-50Ė C |
| Deviation |
Ā± 75 kHz maximum |
| Pre-Emphasis |
75 microsec |
| RFāField Strength |
Does not exceed 80 mV/m at 3 m |
| Compatible Antennas |
ANT 005, ANT 021, ANT 024, ANT 025, ANT 028, ANT 029, ANT 034
Refer to Williams AVās Antenna Selection Install Guide for FCC-compliant antennas for this product. |
| Transmission Range |
Up to 1000 ft (304 m) with ANT 005 coaxial antenna mounted on rear chassis F-connector |
| RF Outputs |
(1x) #10-32 stud connector in center of unit (pcb mounted)
(1x) F-connector on rear chassis |
| RF Transmit (RF) Power Indicator |
1 OLED On Air Indicator with 4 states indicating power level Off, Low, Medium, and Full Power. |
| RF Time Out (sleep mode) |
30 min. duration, 4 hr. duration, or Always On; selected via web page. When audio drops below -18dB, the selected duration begins, and when it expires the unit stops transmitting and goes into a low-power (“sleep”) mode. Any button press or resumption of audio above -18dB “awakens” the unit and it begins transmitting again. |
| Audio Section |
| Audio Inputs |
(1x) Combination 3-pin XLR, 1/4ā (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power. Optional RJ-45 Dante Input (āDā models only). |
| Audio Processor Functions |
DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control, Music, Voice, and Hearing Assistance Audio Presets |
| Frequency Response |
31-16000 Hz, Ā±3 dB (re: 1 kHz) (āMusicā Audio Preset) |
| Signal-to-Noise Ratio |
64 dB (typical) Transmitted RF @ 1kHz |
| Total Harmonic Distortion |
Less than 0.25% @ 1 kHz (RF output) |
| Common Mode Rejection |
Greater than 57 dB @ 1 kHz, Mic or Line mode |
| Audio Input Gain Adjust |
Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web page |
| Phantom Power |
14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4″ TRS jack |
| Audio Level Display |
Front screen bar graph display, each segment representing 3dB. It ranges from -18 (1 segment lit) to +12dB (10 segments lit). Over-range warning is indicated by ‘OLVD’ and flashing empty bar. |
| Headphone Output |
1/4″ TRS stereo jack, mono signal, 7.8 mW total power with 33 Ī©. |
| Dante Output |
(1x) RJ-45 jack |
| Input Level (Bal or Unbal) (at Audio Input Gain = 0dB) |
| Nominal (@7th Segment Lit) |
Overload Warning (Displayed on Screen) |
Absolute Max. Rating* |
|
| Microphone |
| -45 dBV (5.6 mV RMS) |
-20 dBV (100 mV RMS) |
+20 dBV (10.0 V RMS) |
|
| Line |
| -8.4 dBV (380 mV RMS) |
+16 dBV (6.5 V RMS) |
+20 dBV (10.0 V RMS) |
|
| Approvals |
FCC, RoHS3, WEEE, Industry Canada |
| Warranty |
2-year warranty against component failure and manufacturing defects. See the Full Warranty statement on the website for details.* Stresses above these ratings may cause permanent damage or degrade reliability. |
Warranty
2 Years
What is the Infinium Flex System?
The InfiniumĀ® Flex System is a complete assistive listening solution that combines the FM+ T55CD transmitter and Infinium CT1 Controller with FM receivers, earphones, and neckloops. Together, these components support FM, Wi-Fi, and Auracastā¢ audio technologies, providing multiple ways for guests to access venue audio.
What products are included in the Infinium Flex System?

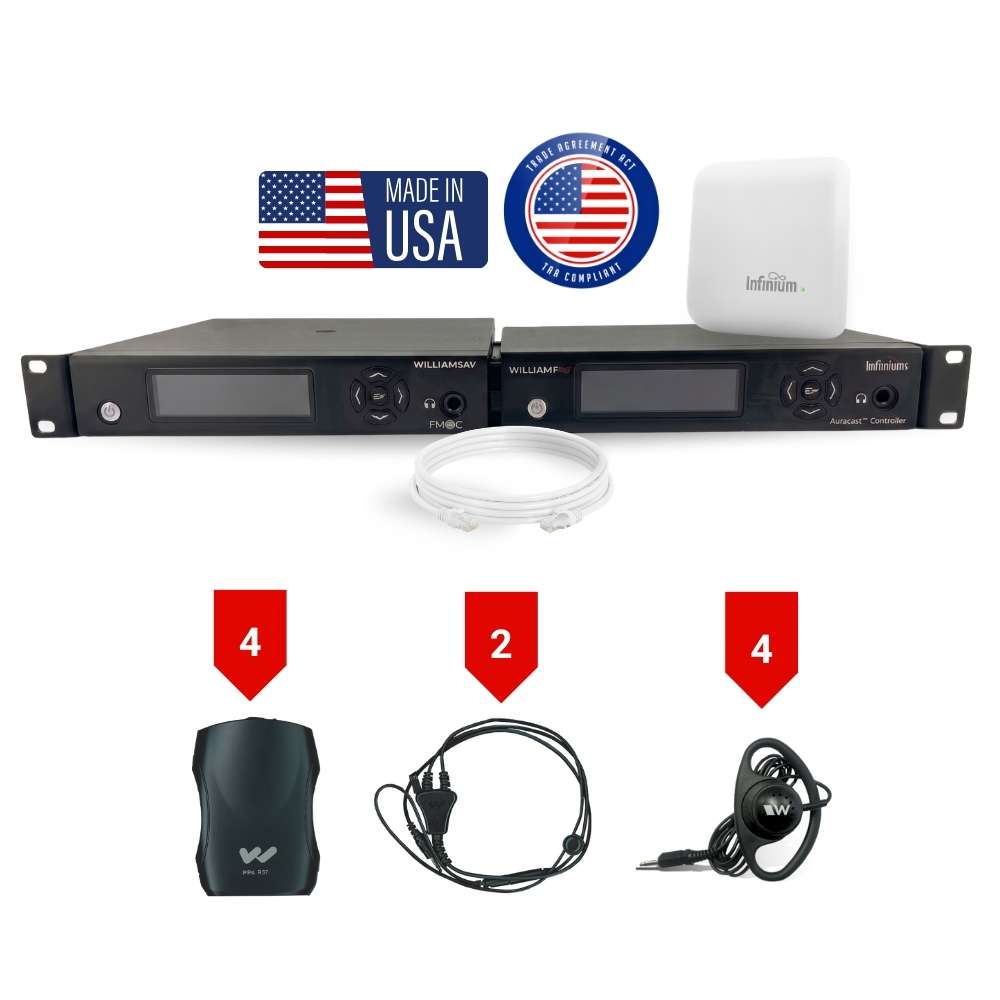

The Infinium Flex System includes:
- FM+ T55CD Dual broadcast transmitter (FM and Wi-Fi) with Dante
- Infinium CT1 controller and transmitter (Auracast) with Dante
- Dual Ā½-Rack Mount Kit
- Four FM Handheld Receivers
- Four Surround Earphones
- ADA Signage for FM/Wi-Fi and Auracast Assistive Listening Systems
Receivers and transmitters are sold separately.
What is the difference between the Infinium Flex Bundle and the Infinium Flex System?
The Infinium Flex Bundle includes the FM+ T55CD transmitter, Infinium CT1 Controller, rack mount kit, and ADA signage. The Infinium Flex System includes all of those components plus four FM handheld receivers, four surround earphones, and two neckloops, making it easier for venues to begin providing assistive listening services immediately.
Does the Infinium Flex System include receivers?
Yes. The system includes four FM handheld receivers, four surround earphones, and two neckloops for guests who use t-coil compatible hearing aids or cochlear implants.
What listening technologies does the Infinium Flex System support?
The Infinium Flex System delivers FM, Wi-Fi, and Auracast broadcast audio.Ā This allows venues to serve users with venue-provided receivers as well as compatible personal listening devices.
Does the Infinium Flex System support bring-your-own-device (BYOD) listening?
Yes. Guests can listen using their own compatible devices. Wi-Fi audio can be streamed to smartphones through the free WaveCASTĀ® app, while Auracast audio can be received on compatible hearing aids, cochlear implants, earbuds, headphones, and smartphones. This gives guests more ways to access audio without requiring a venue-provided receiver.
Can the Infinium Flex System help support ADA assistive listening requirements?
Yes. The Infinium Flex System includes FM receivers, neckloops, earphones, and ADA signage to help venues deploy assistive listening services more quickly. ADA compliance depends on the number of receivers provided, system design, installation practices, and venue-specific requirements.
Does the Infinium Flex System support Auracast?
Yes. The Infinium CT1 broadcasts Auracast audio that can be received by compatible hearing aids, cochlear implants, earbuds, headphones, smartphones, and Infinium receivers.
Does the Infinium Flex System support FM receivers?
Yes. The FM+ T55C D provides traditional FM assistive listening for guests who use venue-provided FM receivers. Four receivers are included in the system.
Can guests listen using their smartphones?
Yes. The FM+ T55C D supports Wi-Fi audio streaming through the free WaveCASTĀ® app, allowing guests to listen using their own smartphones.
Does the bundle include receivers?
Yes, the system includes four FM receivers. Wi-Fi and Auracast receivers, and compatible personal listening devices are sold separately.
Does the Infinium Flex System include DanteĀ® networking?
Yes. Both the FM+ T55C D and Infinium CT1 include Dante connectivity for integration with professional AV networks.
Is the Infinium Flex System made in the USA?
Yes. Both the FM+ T55C D and Infinium CT1 are made in the USA and are TAA compliant.
Is the Infinium Flex Bundle TAA compliant?
Yes. Both products included in the bundle are TAA compliant, making them suitable for many government, transportation, and public-sector projects.
Can the Infinium Flex System help support ADA assistive listening requirements?
The system provides multiple assistive listening technologies that meet ADA requirements when venues provide the required receivers. The system includes four FM handheld receivers and ADA signage, making it easier for venues to promote assistive listening in their location. ADA compliance depends on the overall system design, receiver availability, installation, and venue-specific requirements
Can the Infinium Flex System be installed in a standard equipment rack?
Yes. The included RPK 006 dual rack-mount kit allows the FM T55C D and Infinium CT1 to be mounted side by side within a single rack unit.
Where is the Infinium Flex System available?
The Infinium Flex System is available only in the Americas, where the 72-76 MHz FM band is authorized for assistive listening systems.
