Power Loop Mat

PLM 001

This loop pad can be utilized under a seat cushion, under a table or counter for service desk applications.

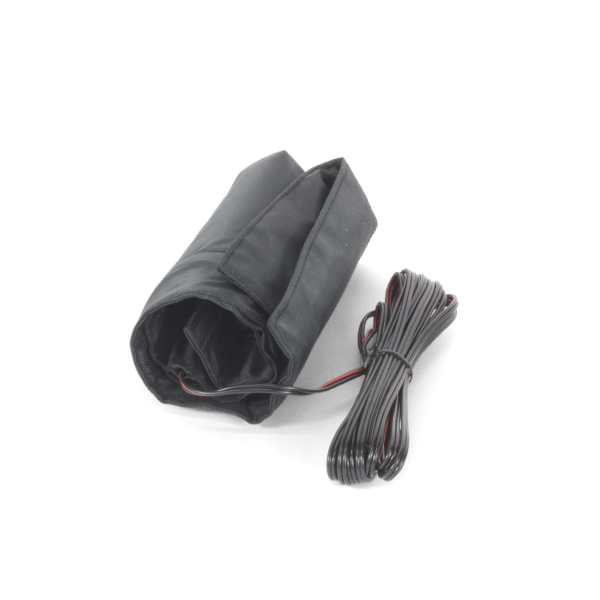

14” Nylon Fabric Mat, containing a ten-turn loop. Can be installed under any non-metal counter, and when used with the PLA 240, produces about a 36” x 36” magnetic field for t-coil equipped hearing aid users.

Applications include: Kiosks, Pharmacies, Bank Teller Windows, Ticket Windows, or any application where close-range hearing assistance (via hearing aid t-coil) is desired. Can also be used as a portable system for meetings as a chair loop or other creative applications.

Description

This loop pad can be utilized under a seat cushion, under a table or counter for service desk applications.

14” Nylon Fabric Mat, containing a ten-turn loop. Can be installed under any non-metal counter, and when used with the PLA 240, produces about a 36” x 36” magnetic field for t-coil equipped hearing aid users.

Applications include: Kiosks, Pharmacies, Bank Teller Windows, Ticket Windows, or any application where close-range hearing assistance (via hearing aid t-coil) is desired. Can also be used as a portable system for meetings as a chair loop or other creative applications.

Features

  • Ideal for counter top hearing assistance applications where hearing aid t-coil can be used
  • Can be used as a chair loop for meetings

PLM 001

Lead Wire Length 16 ft / 5 m
DC Resistance 1.3 Ohms
Weight 0.5 lbs / 225 g
Pad 14 in / 0.4 m square
Wire In Pad 10-turn loop



MIC 027

Phantom Powered No
Impedance 1.4 kΩ
Operating Voltage 1.5 - 10 VDC
Frequency Response 20 Hz - 18 kHz
Dynamic Range 99 dB
Signal-to-Noise Ratio 74 dB
Pick-Up Pattern Uni-directional
Element Electret Condenser
Max Input Sound Level 119 dB SPL
Sensitivity -56 dB ± 3 dB
Color Black
Weight 0.54 lbs
Plug 3.5 mm mono
Cord Length 49”
Approvals WEEE, RoHS
Warranty 90 days


PLA 240

Dimensions:

7” W x 1-5/8” H* x 6” D** (17.8 cm W x 2.86 cm H* x 15.24 cm D**)

*Height without rubber feet. Rubber feet add 1/8” (0.32 cm)

**Depth includes front controls and rear jacks

Weight:

Shipping weight (boxed with accessories): 4.3 lb ( kg)

Unit (amplifier) weight: 1.6 lb ( kg)

Color:

Silver

Power:

Unit Input: 12-24 VDC, 2 A

Power Supply Output: 18 V, 1.5 A

Controls:

Rotary Volume Control,

Rotary Tone Control

On/Off Power Switch

Source Selector Switches

Priority Switch

Input Connections:

Digital Audio TOSlink/Coaxial

2 x Microphone inputs. 3.5 mm mono jack plug. DC powered 5 V for Electret Microphones.

2 x Aux In Left/Right Line Inputs. Phono/RCA jacks. For direct connection to a TV sound output or other sound source.

Output Connections:

Push grip connectors for loop cable (labelled: “loop cable”). Loop will give full output with loop resistance between 0.5 and 1.5 ohms.

Loop output:

3.0 A output current @ 100 Hz - 5 KHz. Meets BS EN60118-4: 2006 for a loop not exceeding 6.5 m (20 ft) in width. Suitable for areas up to 540 sq. ft (50 m2).

Loop cable:

Single turn loop cable. System supplied with 40 m (130 ft) of 24 ga/0.2 mm (0.75 mm2) single core PVC insulated cable. Min cable length 36 ft (11 m) = 0.5 ohms.

Indicators:

Blue/Red LEDs

Waranty:

2 Years



Warranty

2 Years
