T2863 Transmitter

T2863

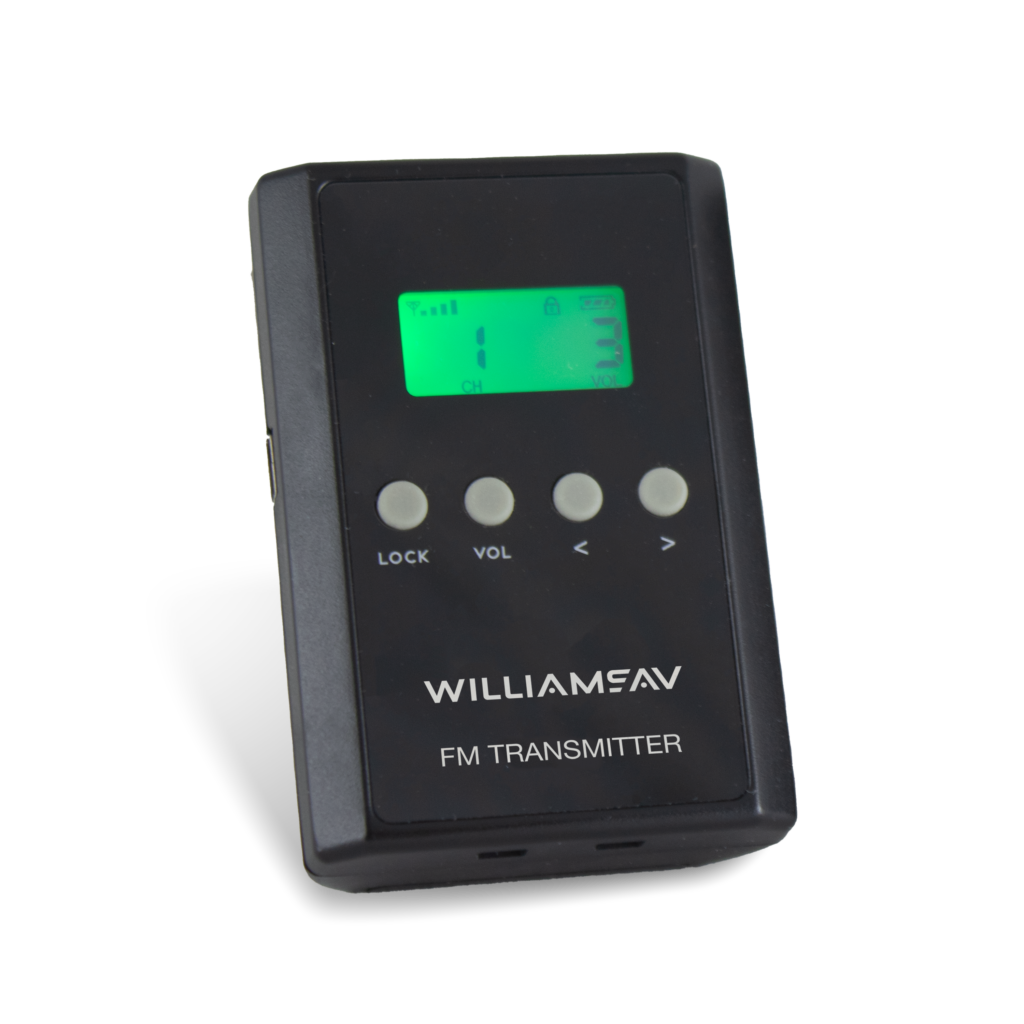

The T2863 FM transmitter is compact, simple to use, and now offers an expanded range of up to 150 meters (500 feet). It has an easy-to-read LCD display, with quick status views and immediate access to 16 user-selectable, pre-set frequencies. Optimized for use in Europe, this transmitter offers exceptional audio quality.

The T2863 can be used with Alkaline AA batteries or rechargeable NiMH AA batteries. The new technology accommodates a variety of microphone/headphone/neck loop options and is ideal for use in assistive listening, tours, and simultaneous interpretation scenarios.

Applications:
Schools
Conferences
Theatres
Tours
Simultaneous Interpretation

NOTE: The operating frequencies on the T2863 transmitter are optimized for European markets. The transmitter cannot be used in all countries. Check with your government´s radio regulations for 863 MHz (NOT 173 – 174MHz) operation.

Features

  • 16 user-selectable, preset frequencies
  • Expanded range of up to 150 meters (500 feet)
  • Easy-to-read LCD display provides a quick view of receiver status and channel number/frequency
  • Stylish, compact design
  • Rechargeable NiMH or non-rechargeable Alkaline AA batteries

T2863

Battery Type: Two AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), or

Two AA 1.5 V rechargeable NiMH batteries (BAT 026-2), charge with a USB A to Mini-B cable.

Battery Life: Alkaline (BAT-001-2): 12 hrs

NiMH (BAT 026-2): 11 hrs

Operating Frequencies: Selectable, 16 channels, 863 – 865 MHz:

Ch. 1 863.075 | Ch. 9 864.075

Ch. 2 863.200 | Ch. 10 864.200

Ch. 3 863.325 | Ch. 11 864.325

Ch. 4 863.450 | Ch. 12 864.450

Ch. 5 863.575 | Ch. 13 864.575

Ch. 6 863.700 | Ch. 14 864.700

Ch. 7 863.825 | Ch. 15 864.825

Ch. 8 863.950 | Ch. 16 865.000

Non-interfering group channels: 1, 4, 8, 11, 16. Can be used simultaneously for up to 5 groups.
Output Power: 10 dBm
Distance: Up to 150 m (500 ft) Line of Sight
External Controls: Top: Power On/Off slide switch.

Front: Momentary push buttons.

Audio Input: 3.5 mm, microphone/audio
Dimensions: 75 mm x 50 mm x 25 mm
Weight: 45 g (without batteries)
Warranty: 2 years



Warranty

2 Years
