Infinium C1 Controller

Auracast™, Assistive Listening

BA-C1

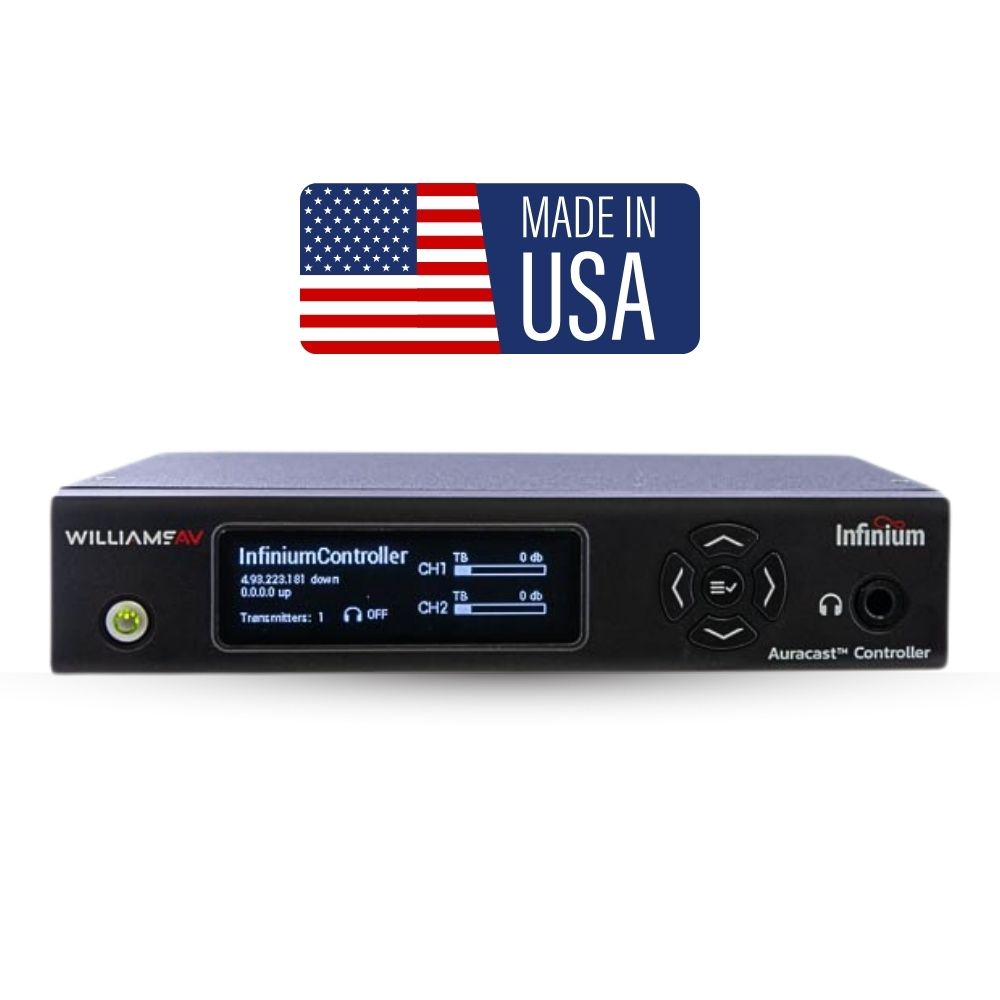

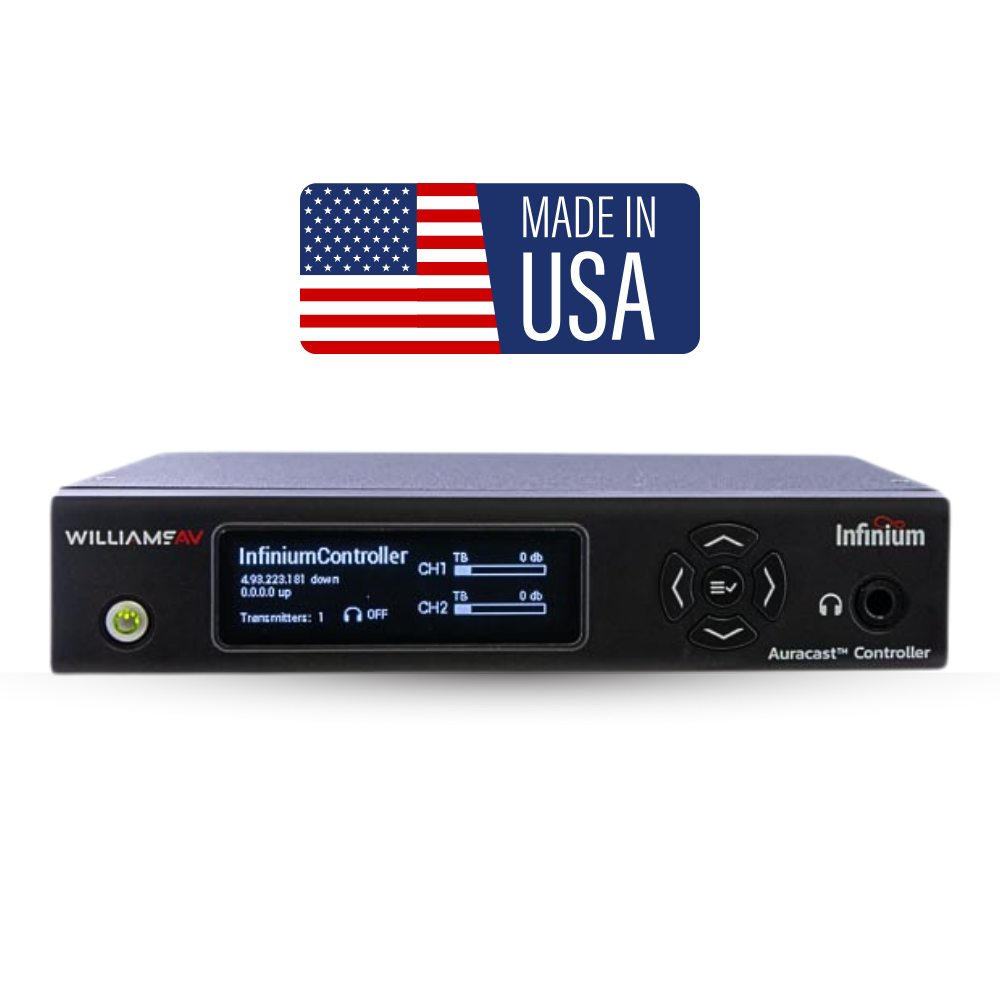

The Infinium® C1 Controller is the central control hub of the patented Infinium Auracast™ broadcast audio system—proudly made in the USA and TAA compliant—designed for scalable, enterprise-level AV deployments. The rack-mount-ready design provides convenient access via the front panel or web interface, giving AV teams full system visibility and control.

With Enhanced Scale & Management (ESM) features, teams can easily scale and manage large transmitter deployments through a centralized web interface. Native Dante® integration enables seamless, plug-and-play AV networking, while open API support allows integration with third-party AV control and smart building systems—making it easy to deploy and manage multi-stream Auracast™ audio across large, and complex environments.

See description for more details. Infinium transmitters and handheld receivers sold separately.

Design & Consultant Specs

Built for centralized control and scalability, the Infinium® C1 Controller is the core of the patented Infinium Auracast™ broadcast audio system—proudly made in the USA and TAA compliant—managing audio distribution, system configuration, and transmitter coordination across large, multi-room deployments.

Enhanced Scale & Management (ESM) features support up to 150 transmitters per system and enable intuitive organization through Spaces-based architecture, coordinated transmitter arrays, and simplified system identification and setup—making it easy to deploy and manage Auracast™ audio across complex environments.

The rack-mount-ready controller provides access via front panel or web interface for configuration, monitoring, and troubleshooting. Native Dante® integration and open API support ensure seamless connectivity with AV networks, control platforms, and smart building systems, while secure, PIN-protected channels support both public and private audio applications.

System Includes

(1) BA-C1 Infinium Controller and power supply

Features

Key Advantages

  • Centralized Web-Based Management – Configure, monitor, and manage the Infinium system through an intuitive web interface or controller front panel
  • Expanded System Scalability – Support up to 150 transmitters per system, with additional scalability through network segmentation and multiple controllers
  • Coordinated Transmitter Arrays – Enable seamless listener movement across large or multi-room environments with consistent audio coverage
  • Spaces-Based System Organization – Organize transmitters into logical groups (rooms, zones, or areas) for simplified navigation and control
  • Rack-Mount Ready Design – Clean integration with convenient local and remote access
  • Native Dante® Integration – Seamless, plug-and-play AV networking
  • Open API Support – Integrates with third-party AV control and smart building systems
  • Secure Channel Management – PIN-protected channels for public or private audio delivery

Ideal For Use

  • Enterprise and multi-room AV deployments
  • Campuses, transportation hubs, and large venues
  • Centralized AV system control and monitoring
  • Assistive listening, interpretation, and multi-stream audio applications

BA-C1 architectural and engineering specifications

Architectural/Consultant Specs – Infinium Systems
General System
The system shall provide a full assistive listening system consisting of controllers, transmitters, dedicated receivers, and charging docks under a single brand. The system shall utilize Bluetooth® LE (BLE) Auracast™ wireless broadcasting technology and standards to deliver audio to an unlimited number of Auracast™ enabled users. The system shall support standard and high-quality audio in mono and stereo configurations. The system shall provide end-to-end latency of less than 40 milliseconds when used with the dedicated receivers. The system shall incorporate AES128-CCM encryption with a 128-bit key and offer both open and password-protected channel security options to ensure flexible deployment. The system shall be an Infinium by WilliamsAV.
Controller
The system shall include a dedicated controller. The controller shall be no larger than 8.45″ W x 5.75″ D x 1.72″ H (21.5 cm x 14.6 cm x 4.4 cm) and shall weigh 2.3 lbs (1.1 kg) or less. The controller shall include a push on/push off latching power button for convenient control. The controller shall include a multi-purpose RJ-45 connection for digital audio networking, transmitter configuration and control, and PoE output. The controller’s single, multipurpose RJ-45 port shall support Dante audio networking. The controller shall provide Power over Ethernet (PoE) output to supply power to the Infinium Transmitter. The controller shall support Mic inputs via XLR /1/4″ combination and/or terminal block connectors. The controller shall include Line input via two terminal block connections and combination XLR & 1/4″ connections. The controller shall include a single 1/4″ headphone/audio output jack. The controller shall include a 3.12” high-resolution OLED direct entry User Interface, supporting button actuated programming entry and status indicator selections. The controller shall feature a hosted web page accessible via the dedicated RJ-45 Ethernet control port. The controller shall include a single, dedicated RJ-45 port for connecting a PC to the hosted web page providing PC User Interface for configuration, programming, status display and firmware updates.The controller shall support DSP programmable audio processor functions including compression, high-pass filter frequency, low-pass filter frequency, and audio presets. Audio presets shall include Hearing Assistance, Music, Voice, and Disable.The controller shall be compatible with a standard 19” rack, occupying one EIA rack space high and 1/2 space wide. It shall support installation of 1–2 units in a single rack space. The controller shall be suitable for placement on shelves, tables, podiums, or similar flat surfaces. The controller shall meet the following compliance standards: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme. The controller shall include a 2-year parts and labor Warranty.The system shall include an Infinium Controller.
Transmitter
The system shall include Bluetooth® LE (BLE) Auracast™ transmitters.The transmitter shall have a single RJ45 connector.The transmitter shall be powered via Power over Ethernet (PoE). The transmitter shall support a single Ethernet Cat 5e cable delivery of audio, device configuration, device status, PoE power input and firmware updates.The transmitter shall support Dante audio via the single multi-purpose RJ45 connector.The transmitter shall broadcast two independent mono or one stereo BTLE audio streams per with Bluetooth LE Auracast guidelines.The transmitter shall have the ability to adjust output power to meet the desired coverage needs of the space.The transmitter shall support broadcast of 16 kHz and 24 kHz (Auracast™ Standard), as well as 48 kHz (Auracast™ High) sample rates. The transmitter shall include LED status indicator that can be disabled via programming interface. The transmitter shall be no larger than 4.7″ W x 5.0″ D x 1.19″ H (11.9 cm x 12.7 cm x 3 cm) and shall weigh less than 2.3 lbs (1.04 kg). The transmitter shall support Ceiling Mount, Wall Mount and Shelf Placement installations. The device shall operate within the 2400 to 2483.5 MHz frequency band, consistent with global ISM standards.The transmitter shall minimally support Bluetooth version 5.4 LE, supporting advanced power efficiency and range.The device shall support the LC3 codec for high-quality, low-latency audio transmission. The transmitter shall comply with FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan) standards.The transmitter shall include a 2-year parts and labor warranty.The system shall include an Infinium transmitter.

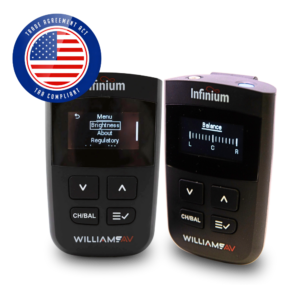

Receiver
The system shall include dedicated receivers for users without Auracast™ equipped devices. The dedicated receiver dimensions shall be no more than 3.9″ x 2.48″ x 0.85″ (99 x 63 x 21.6 mm) without the belt clip and weigh no more than 3.8 oz (108 g). The receiver shall include a removable belt clip and be compatible with an optional lanyard. The receiver shall include a 3.5 mm stereo jack to support neck loops compatible with T-coil hearing aids, assistive listening headphones or earphones as desired by the user. The receiver shall include volume up/down and balance left/right adjustment controls to improve intelligibility for those users requiring audio assistance. The receiver shall include power, increment, decrement, CH/BAL, and menu/select buttons controls.The receiver power button shall incorporate a programmable LED status indicator. The receiver shall have an OLED display with diagonal size of 1.54” or greater to display channels available, channel selected, signal level and battery level. Advanced programmable controls shall include device setting lock, sleep timeout, screen timeout, power button LED enable/disable, signal strength display type, and factory reset. The receiver shall use a rechargeable lithium-ion (Li-ion) camera-style, field-replaceable battery with a minimum capacity of 1200 mAh. The receiver shall support charging via dual contact drop-in chargers or the USB-C port. The receiver shall support firmware updates for future growth. The receiver shall be an Infinium BA R1.

Contact Williams AV for a quote
US:       800.843.3544                [email protected]
INT’L    +1.952.943.2252           [email protected]
WilliamsAV.com

BA-C1

Controller

Dimensions 8.45″ W x 8.25″ D x 1.72″H (21.5 cm x 14.6 cm x 4.4 cm)
Weight 2.3 lbs (1.04 kg)
Color Black
Installation Configurations Rack Mount: Standard 19” Rack, one EIA rack space high, 1/2 space wide
1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
Shelf: Can sit on shelf, table, podium, etc.
Temperature Range – Operating +32° F to +122° F (0° C to 50° C)
Temperature Range – Storage -4° F to +158° F (-20° C to 70° C)
Power Supply Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
Power Button Push On/Push Off latching power button.
Ethernet Control Port (1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T
Front Panel Display 3.12” High Resolution OLED Direct Entry UI with button entry programming and status indicator selections.
Dante (1x) RJ-45 jack.
Power Supply Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
PoE Power Out PoE
Compliance Approvals FCC, RoHS3, WEEE, Industry Canada/ISED, CE,  UKCA, RCM, CB Scheme
Warranty 2-year parts and labor

Warranty

2 Years

No Videos Are Available

  1. What does the Infinium C1 Controller do?
    The C1 controller is the central control hub of the Infinium Auracast™ system, managing audio distribution, system configuration, and transmitter coordination across a deployment. It enables centralized control of multi-stream audio in large or multi-room environments.
  2. How does the Infinium system scale across large deployments?
    The controller’s Enhanced Scale & Management (ESM) features allow the Infinium system to 150 transmitters for large deployments. Additional scalability is achieved through network segmentation and multiple controllers for larger deployments.
  3. How are transmitters organized and managed in the system?
    Infinium’s web interface includes many ESM features to help organize and manage multiple transmitters, including a spaces-based feature that allows transmitters to be grouped by room, zone, or area; transmitter naming option for easy identification; and coordinated transmitter arrays that enable seamless listener movement across large or multi-room environments with consistent audio coverage, to name a few. These features simplify navigation, system control, and management across complex environments.
  4. What are coordinated transmitter arrays?
    Coordinated transmitter arrays allow multiple transmitters to broadcast the same audio signal across a space. This enables listeners to move freely between areas while maintaining a consistent listening experience.
  5. Can the Infinium C1 integrate with existing AV systems?
    Yes. The C1 controller includes native Dante® integration for seamless audio networking and supports analog inputs. It also features an open API for integration with third-party AV control systems and smart building platforms.
  6. How is the Infinium system configured and managed?
    The system can be configured and monitored through an intuitive web-based interface or directly from the controller’s front panel. This provides flexible local and remote management options for AV teams.
  7. Does the C1 Controller include a transmitter or receiver?
    No. The C1 is a standalone controller. Infinium transmitters and receivers are sold separately and deployed as part of a complete system.
  8. How are secure audio channels managed?
    The system supports secure channel management with PIN-protected access. This allows venues to offer both public and private audio streams for different applications.
  9. What types of audio applications does the C1 support?
    The C1 supports assistive listening, audio description, language interpretation, and program audio delivery. Multiple audio streams can be managed and distributed across the same system.
  10. Is the Infinium system suitable for large or multi-room facilities?
    Yes. The system is designed for enterprise-scale deployments, including campuses, transportation hubs, theaters, and other large venues where centralized control and scalability are essential.
