Infinium® SYS2 Auracast™ Broadcast Audio System
The Infinium system from Williams AV is a patented, professional-grade Auracast™ broadcast audio solution—proudly made in the USA and TAA compliant—designed to help venues meet ADA assistive listening requirements, support multilingual communication and audio description, and enhance accessibility across a wide range of environments.
Whether attendees use venue-provided Infinium receivers or their own Auracast-compatible devices, Infinium delivers clear, low-latency audio to every listener.
With Enhanced Scale & Management (ESM) features, AV teams can centrally configure, monitor, and scale systems through a web interface—supporting multi-zone environments and larger deployments with ease.

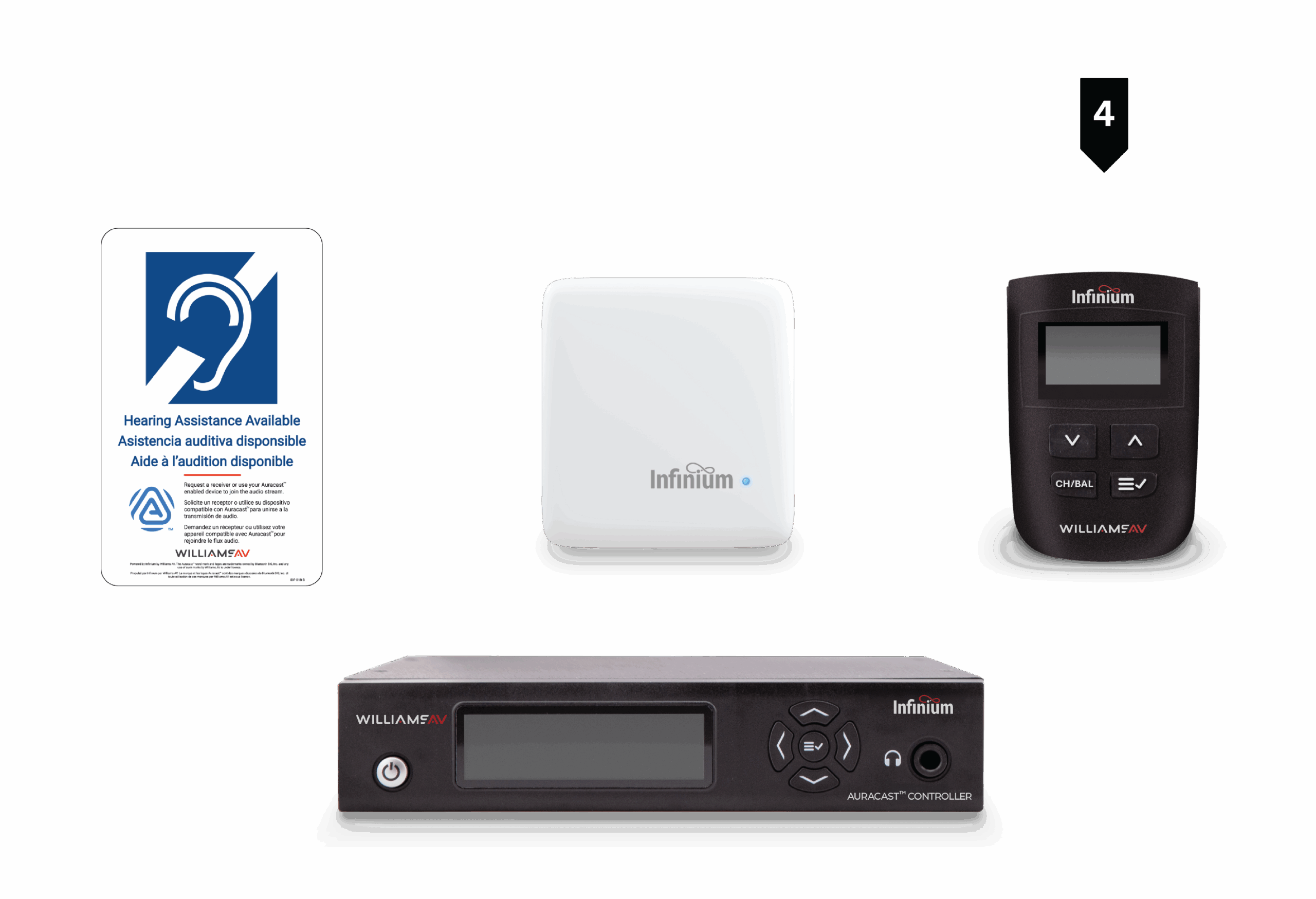

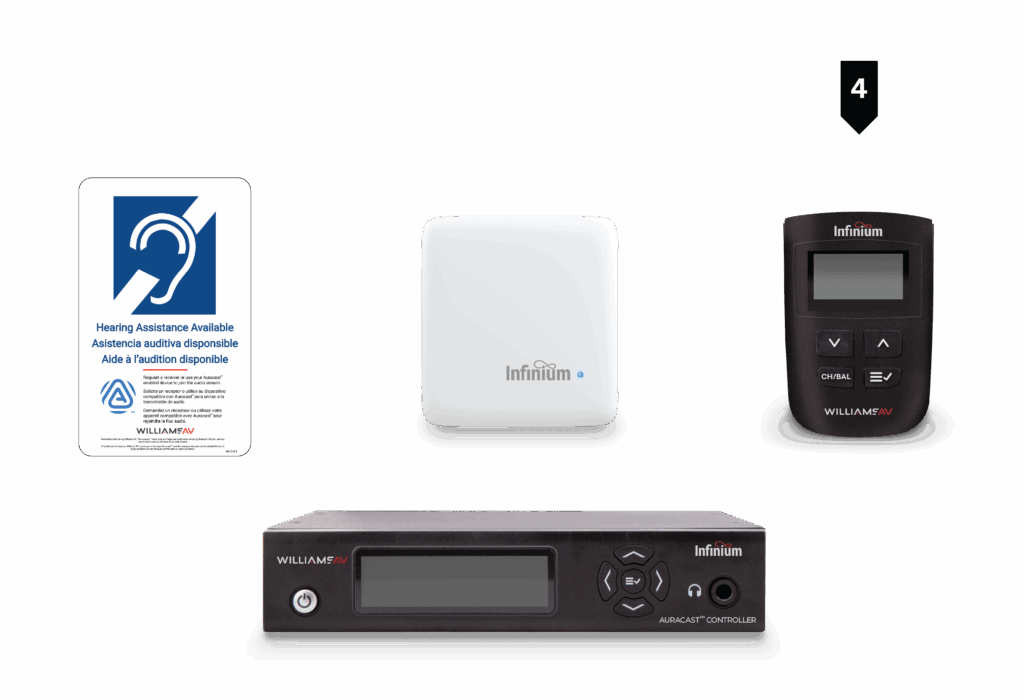

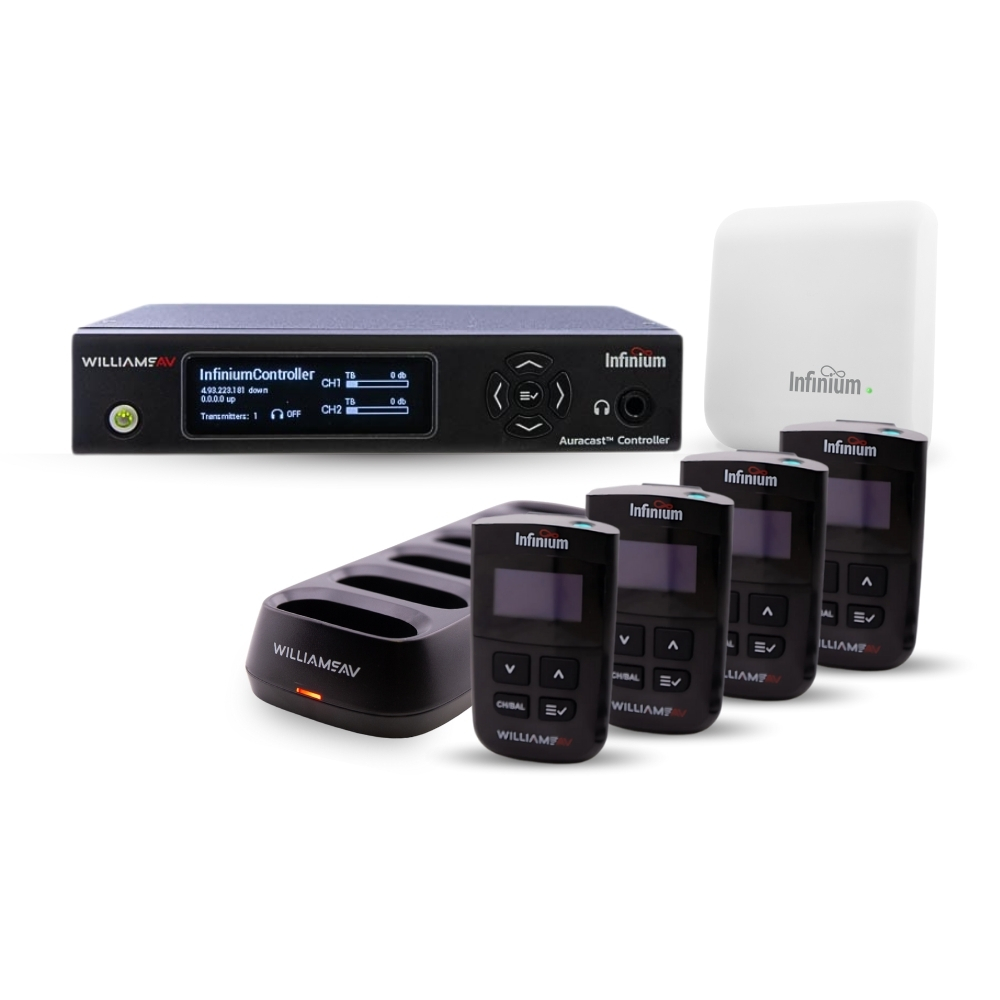

System Includes
(1) BA-CT1 (Infinium Controller and Transmitter package)
(4) BA-R1 Infinium receivers

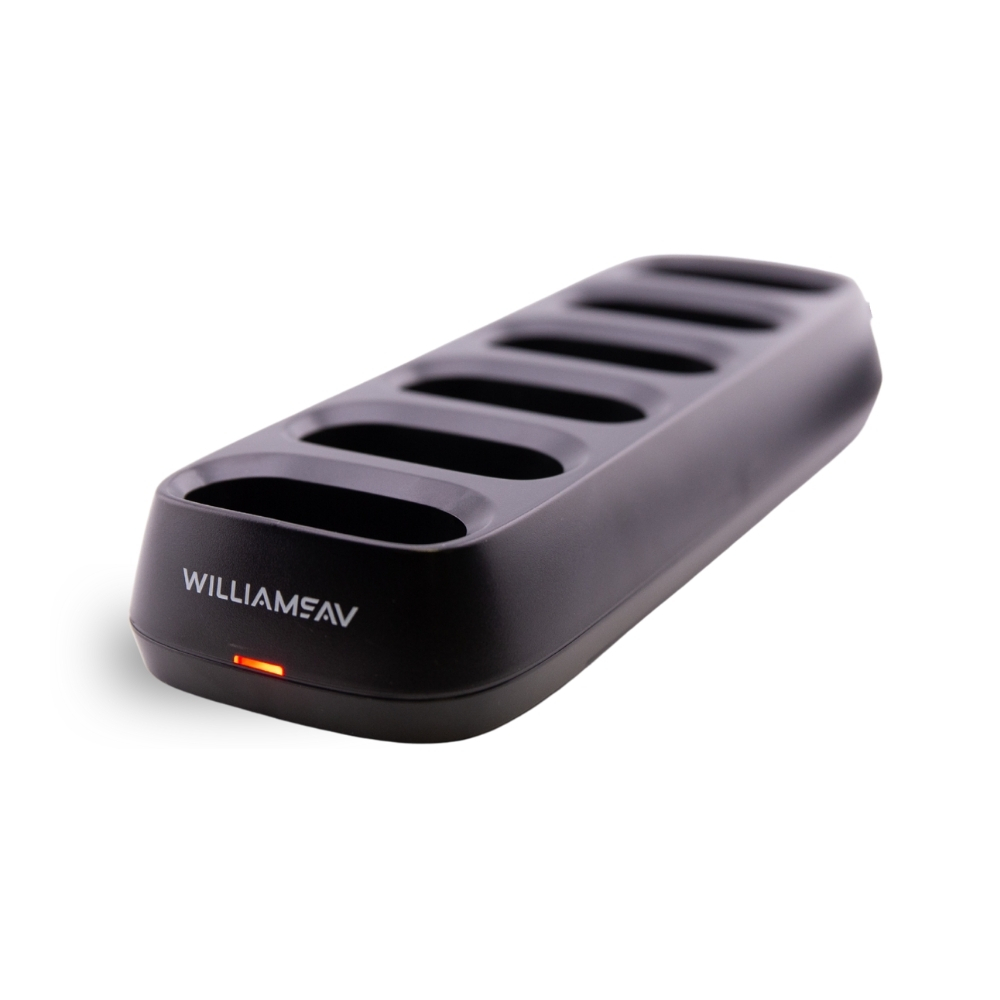

(1) CHG 004 6 bay charger
(1) IDP 018 Auracast™ ADA wall plaque
(2) NKL 001s Neckloops
(4) HED 024 headphones
(1) RPK 005 Rack mount kit
Features
Key Features
- Modular Design – The controller and transmitter operate independently for flexible installation and seamless AV integration.
- Quick Transmitter Installation – A single CAT cable provides both power and audio, streamlining setup for installers.
- Flexible System Management – Configure, monitor, and troubleshoot onsite from the front panel or via a web interface.
- Ergonomic Receiver – The Infinium R1 features a large display, user-controlled audio balance, long battery life, and supports charging via USB or a charging dock.
- Broad Device Compatibility – Delivers audio to Infinium® receivers and any Auracast™ enabled hearing aids, cochlear implants, or headphones.
- AES67 & Dante®-Ready – Infinium is Dante AES67 compliant, so it connects natively with Dante devices and interoperates with other AES67-compatible professional audio equipment, integrating smoothly into AV networks for efficient audio routing.
- Enterprise-Ready with Dante Domain Manager – Works with all three Dante Domain Manager tiers, Silver, Gold, and Platinum, giving IT and AV teams secure, login-based permissions, room-by-room device grouping, and the ability to manage and scale the system across an entire building or campus from one place.
Infinium redefines assistive listening by offering a modern, easy-to-deploy audio solution that ensures no guest misses a word. Ideal for…
- Theaters & Performing Arts Centers
- Classrooms & Lecture Halls
- Airports & Transit Terminals
- Fitness Centers & Gyms
BA-SYS2 architectural and engineering specifications
Architectural/Consultant Specs – Infinium Systems
General System
- The system shall provide a full assistive listening system consisting of controllers, transmitters, dedicated receivers, and charging docks under a single brand.
- The system shall utilize Bluetooth® LE (BLE) Auracast™ wireless broadcasting technology and standards to deliver audio to an unlimited number of Auracast™ enabled users.
- The system shall support standard and high-quality audio in mono and stereo configurations.
- The system shall provide end-to-end latency of less than 40 milliseconds when used with the dedicated receivers.
- The system shall incorporate AES128-CCM encryption and offer both open and password-protected channel security options to ensure flexible deployment.
- The system shall support connecting multiple transmitters to a single controller utilizing standard managed IP switches.
- The system shall support the configuration of up to 150 transmitters (depending on network capacity) through a Web Control Interface (WCI) accessed through a single controller.
- The system shall support automatic receiver hopping between transmitters through arranging transmitters in arrays through the Web Control Interface.
- The system shall support grouping transmitters and transmitter arrays into Spaces through the Web Control interface (WCI).
- The system shall be AES67 compliant, providing native interoperability with third-party AES67-compatible professional audio equipment in addition to the native Dante network.
- The system shall support integration with Dante Domain Manager (DDM) across Silver, Gold, and Platinum tiers, providing login-based permissions, room and building-level device grouping, and multi-subnet scalability.
- The system shall be an Infinium by Williams AV.
Controller
- The system shall include a dedicated controller.
- The controller shall be no larger than 8.45″ W x 5.75″ D x 1.72″ H (21.5 cm x 14.6 cm x 4.4 cm) and shall weigh 2.3 lbs (1.1 kg) or less.
- The controller shall include a push on/push off latching power button for convenient control.
- The controller shall include a dedicated RJ-45 port for connecting a PC either directly to the controller or through a network to provide access to a Web Control Interface (WCI) for configuration, programming, status display and firmware updates.
- The controller shall include a dedicated RJ-45 port for direct transmitter connection or to support Dante audio networking.
- The controller shall provide Power over Ethernet (PoE) output to supply power to the Infinium transmitter.
- The controller shall support microphone inputs via XLR /1/4″ combination and/or terminal block connectors.
- The controller shall include two line inputs. Input one shall have the options of a combination XLR & 1/4″ connections or a terminal block connection. Input two shall be a terminal block connection.
- The controller shall include a single 1/4″ headphone/audio output jack for audio monitoring.
- The controller shall include a 3.12” high-resolution OLED and a direct entry user interface supporting button actuated programming entry and status indicator selections.
- The controller shall be able to monitor up to 150 transmitters with details visible on the display.
- The controller shall support DSP programmable audio processor functions including compression, high-pass filter frequency, low-pass filter frequency, and audio presets. Audio presets shall include Hearing Assistance, Music, Voice, and Flat.
- The controller shall be compatible with a standard 19” rack, occupying one EIA rack space high and 1/2 space wide. It shall support installation of 1-2 units in a single rack space.
- The controller shall be suitable for placement on shelves, tables, podiums, or similar flat surfaces.
- The controller shall be AES67 compliant, enabling native interoperability with AES67-compatible third-party audio devices.
- The controller shall support Dante Domain Manager (DDM) integration across Silver, Gold, and Platinum tiers.
- The controller shall meet the following compliance standards: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, AES67.
- The controller shall include a 2-year parts and labor Warranty.
- The system shall include an Infinium Controller.
Transmitter
- The system shall include one or several Bluetooth® LE (BLE) Auracast™ transmitter.
- The transmitter shall have a single RJ45 connector.
- The transmitter shall be powered via Power over Ethernet (PoE).
- The transmitter shall support a single Ethernet Cat 5e cable delivery of audio, device configuration, device status, PoE power input and firmware updates.
- The transmitter shall support Dante audio via the single multi-purpose RJ45 connector.
- The transmitter shall broadcast two independent mono or one stereo audio streams per with Bluetooth Auracast guidelines.
- The transmitter shall have the ability to adjust output power to meet the desired coverage needs of the space.
- The transmitter shall support broadcast of 16 kHz and 24 kHz (Auracast™ Standard), as well as 48 kHz (Auracast™ High) sample rates.
- The transmitter shall include and LED status indicator that can be disabled via programming interface.
- The transmitter shall be no larger than 4.7″ W x 5.0″ D x 1.19″ H (11.9 cm x 12.7 cm x 3 cm) and shall weigh 2.3 lbs (1.04 kg) or less.
- The transmitter shall support Ceiling Mount, Wall Mount and Shelf Placement installations.
- The transmitter shall be AES67 compliant, enabling native interoperability with AES67-compatible third-party audio devices.
- The transmitter shall support Dante Domain Manager (DDM) integration as part of an Infinium system, across Silver, Gold, and Platinum tiers.
- The transmitter shall comply with FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Giteki (Japan), AES67, standards.
- The transmitter shall include a 2-year parts and labor warranty.
- The system shall include an Infinium transmitter.

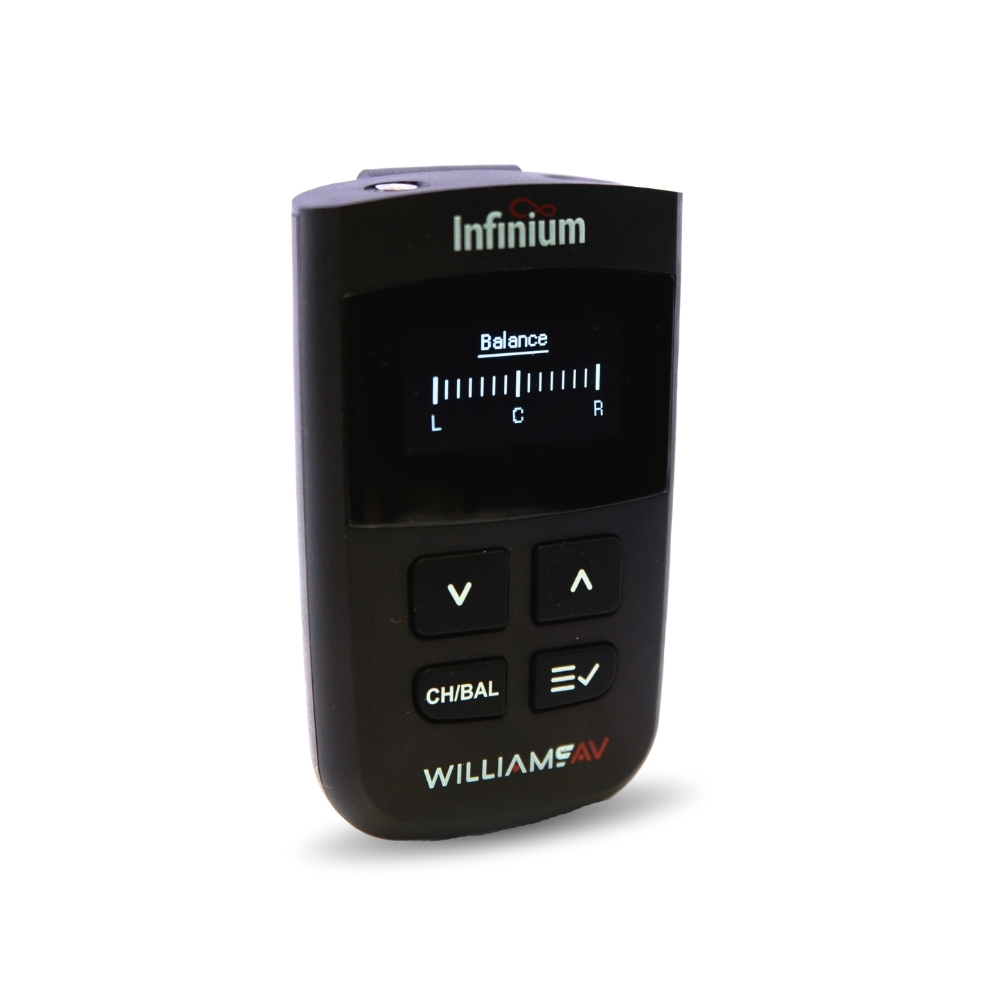

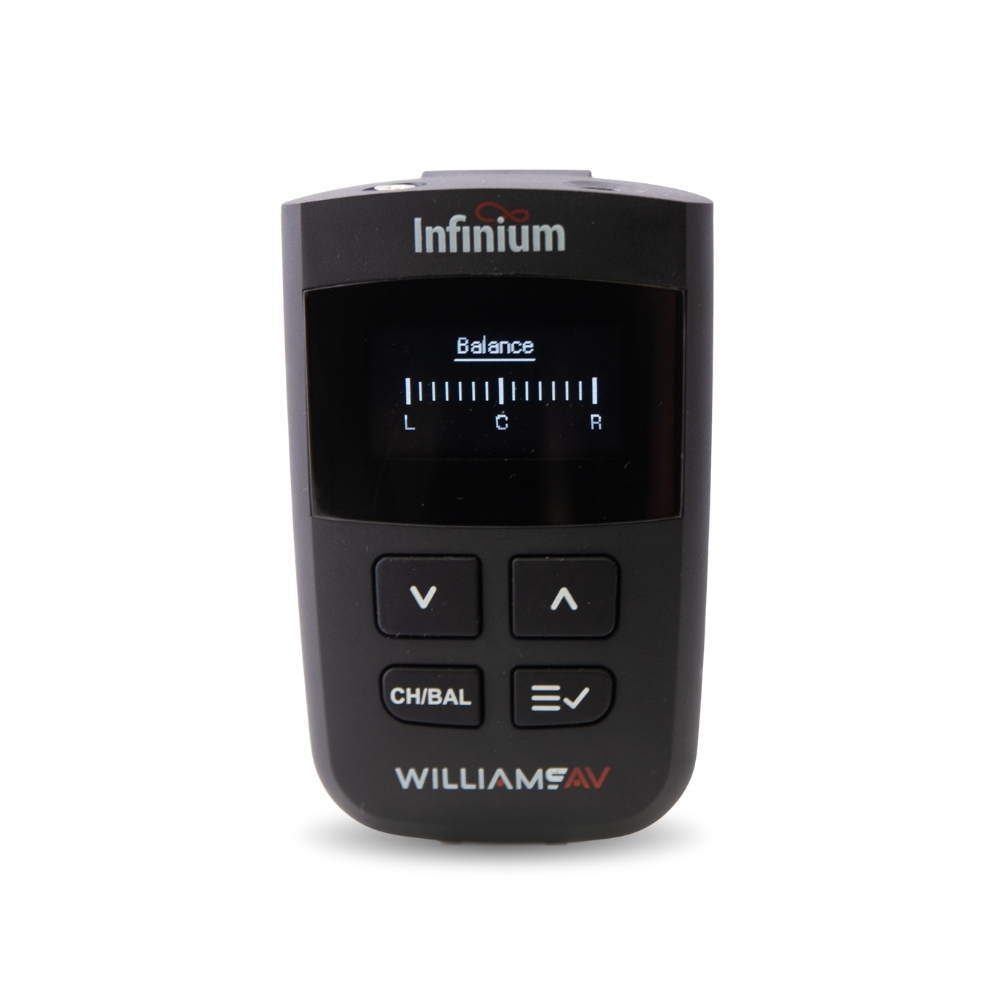

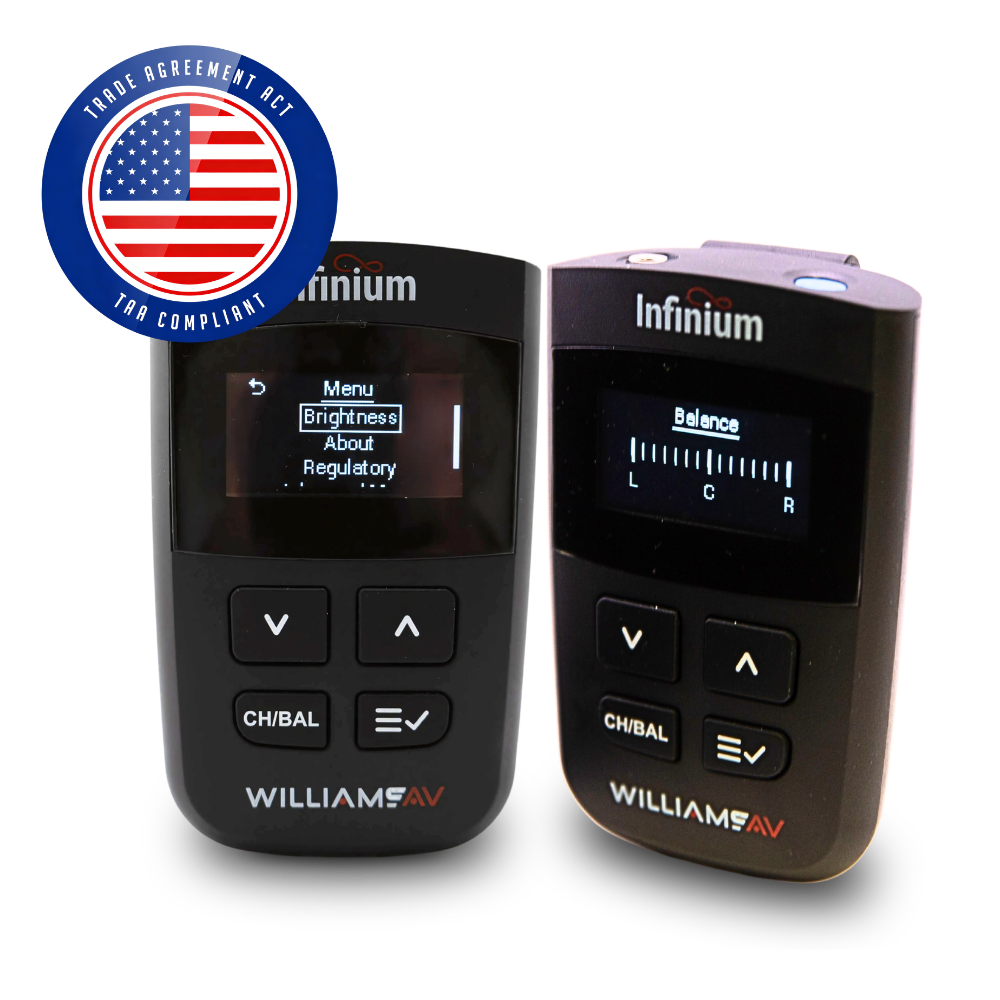

Receiver
- The system shall include dedicated receivers for users without Auracast™ equipped devices.
- The dedicated receiver dimensions shall be no more than 3.9″ x 2.48″ x 0.85″ (99 x 63 x 21.6 mm) without the belt clip and weigh no more than 3.8 oz (108 g).
- The receiver shall include a removable belt clip.
- The receiver shall include a 3.5 mm stereo jack to support neck loops compatible with T-coil hearing aids, assistive listening headphones or earphones as desired by the user.
- The receiver shall include volume up/down and balance left/right adjustment controls to improve intelligibility for those users requiring audio assistance.
- The receiver shall include power, increment, decrement, CH/BAL, and menu/select buttons controls.
- The receiver power button shall incorporate a programmable LED status indicator.
- The receiver shall have an OLED display with diagonal size of 1.54” or greater to display channels available, channel selected, signal level and battery level.
- Advanced programmable controls shall include device setting lock, sleep timeout, screen timeout, power button LED enable/disable, signal strength display type, and factory reset.
- The receiver shall use a rechargeable lithium-ion (Li-ion) camera-style, field-replaceable battery with a minimum capacity of 1200 mAh.
- The receiver shall support charging via contact drop-in chargers or the USB-C port.
- The receiver shall be programmable to connect to Infinium streams only or to general Auracast streams.
- The receiver shall automatically switch between transmitters depending on signal strength.
- The receiver shall support firmware updates for future growth.
- The receiver shall be an Infinium BA R1.
Contact Williams AV for a quote
US: 800.843.3544 [email protected]
INT’L +1.952.943.2252 [email protected]
WilliamsAV.com
BA-SYS2
Controller (BA-C1)
| Dimensions |
8.45″ W x 8.25″ D x 1.72″ H (21.5 cm x 21 cm x 4.4 cm) |
| Weight |
2.3 lbs (1.04 kg) |
| Color |
Black |
| Installation |
Rack Mount (19″ standard, 1 EIA space high, 1/2 space wide; 1-2 units per space) or Shelf/Table/Podium |
| Operating Temperature |
+32° F to +122° F (0° C to 50° C) |
| Storage Temperature |
-4° F to +158° F (-20° C to 70° C) |
| Power Supply |
Desktop Transformer (TFP 062); 100-240 VAC, 50/60 Hz input; 24 VDC, 750 mA, 18W output; 2.5mm barrel connector |
| Power Button |
Push On/Push Off latching |
| Ethernet Control Port |
(1x) RJ-45 for web UI, programming, status display; CAT 5e up to 328 ft (100 m); 10/100 Base-T |
| Front Panel Display |
3.12″ High Resolution OLED with button-entry programming |
| Dante |
(1x) RJ-45 jack |
| Networking |
AES67 Compliant: Yes. Dante Domain Manager (DDM) Compatible: Yes (Silver / Gold / Platinum). |
| PoE Power Output |
PoE |
| Compliance Approvals |
FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, AES67 |
| Warranty |
2-year parts and labor |
Transmitter (BA-T1)
| Dimensions |
4.7″ W x 5.0″ D x 1.19″ H (11.9 cm x 12.7 cm x 3 cm) |
| Weight |
0.4 lbs (0.18 kg) |
| Color |
White |
| Installation |
Ceiling Mount, Wall Mount, Shelf |
| Operating Temperature |
+32° F to +122° F (0° C to 50° C) |
| Storage Temperature |
-4° F to +158° F (-20° C to 70° C) |
| Power |
PoE (Input) |
| Connection |
RJ45 (1x) with Dante® audio, control and PoE |
| Networking |
AES67 Compliant: Yes. Dante Domain Manager (DDM) Compatible: Yes, as part of an Infinium system (Silver / Gold / Platinum). |
| Power ON Indicator |
Programmable LED |
| Transmitter Power Output |
Programmable |
| Compliance Approvals |
FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Giteki (Japan), AES67 |
| Warranty |
2-year parts and labor |
Cable
| Ethernet Cable |
10′ – CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant |
Receiver
| Dimensions |
3.9″ x 2.48″ x 0.85″
99 x 63 x 21.6 mm |
| Dimensions with Belt Clip |
3.9″ x 2.48″ x 1.19″
99 x 63 x 30.2 mm |
| Weight |
3.8 oz (107.7 g) |
| Shipping Weight |
4.5 oz (127.6 g) |
| Color |
Black |
| Battery Type |
Lithium Ion (Li-ion) Camera Style Rechargeable Battery; Field Replaceable |
| Battery Size |
3.7 Vdc, 1200 mAh |
| Battery Life |
> 20 hours |
| Temperature Range – Operating |
+14° F to +104° F (-10° C to 40° C) |
| Temperature Range – Storage |
-4° F to +122° F (-20° C to +50° C) |
| Temperature Range – Charging |
+41° F to +114° F (+5° C to 40° C) |
| Charging Connections |
Dual contacts for use with Infinium Drop In Chargers or USB-C Connector |
| Button Controls |
Power, Increment, Decrement, CH/BAL, Menu/Select |
| Display |
OLED display 1.38 x o.69 in (35.1 x 17.5 mm), Diagonal 1.54″ (39.2 mm) |
| Belt Clip |
Removable |
| Audio Output Connector |
3.5 mm stereo jack for wired stereo or mono headphones, earphones or neckloops |
| Approvals |
FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme |
| Warranty |
2-years parts and labor |
| USB-C Connection |
Power/Charge (5V @~500 mA)
Firmware Updates |
Warranty
2 Years
1. How do you use an Auracast receiver like the Infinium R1?
Users can listen to Auracast audio with headphones or earphones connected to the receiver via the 3.5 mm stereo jack, or through t-coil-equipped hearing aids using a compatible stereo neck loop connected to the receiver.
2. Can you use hearing aids with the Infinium R1 Auracast receiver?
Yes. The Infinium R1 works with t-coil-enabled hearing aids when used with a stereo neck loop connected to the receiver, providing a clear and accessible assistive listening experience.
3. What is the difference between open and secure audio on an Auracast receiver?
Open (public) audio allows anyone to access an Auracast broadcast, while secure (private) audio requires a PIN for access, enabling controlled or restricted listening.
4. How long does the Infinium R1 receiver battery last?
The Infinium R1 is designed for reliable, all-day operation on a single charge, supporting full-day events and continuous venue use.
5. How do you charge the Infinium R1 receiver?
The receiver can be charged using a standard USB connection or with an optional multi-unit charging dock for efficient charging and storage.
6. Does the Infinium R1 help meet ADA assistive listening requirements?
Yes. When used as part of a complete Infinium broadcast-audio system with receivers, the Infinium R1 supports ADA-compliant assistive listening, helping venues create a more inclusive experience.
7. Does the Infinium R1 receiver need to be AES67 compliant or connected to Dante Domain Manager (DDM)?
No. The Infinium R1 receiver connects to the system over Bluetooth® LE Auracast™, not the Dante network, so it doesn’t require AES67 compliance or DDM enrollment itself. AES67 compliance and Dante Domain Manager (DDM) management apply to the Infinium Controller and Transmitter, which handle the Dante audio network side of the system.
