Features
- Operates up to 200 hours with two AA alkaline batteries
- Simple to use — on/off volume control
- Internal tone control
- 3.5mm stereo jack
- Compatible with Williams Sound 2- and 12-bay chargers (CHG 3502 and CHG 3512). Chargers sold separately.
How It Works
Belt Clip Installation
To install the belt clip on the rear of the PLR BP1, position the belt clip on the back. Turn the belt clip 180˚ left or right to secure the clip. The BP1 can now be clipped onto a belt. To remove, turn the belt clip 180˚ so the open end of the clip points up, and gently pull the belt clip off.
The RCS 004 can be connected to the belt clip if use of a lanyard is desired.
PLR BP1 architectural and engineering specifications
The receiver shall be a body pack style Induction loop receiver. It shall operate for up to 200 hrs with two AA Alkaline batteries and be housed in a black plastic enclosure. It shall have battery recharge ability utilizing drop-in chargers.
The receiver shall have a 3.5 mm headphone jack, on/off volume control. There shall be a tone control inside the battery compartment. It shall have a green power LED which will blink when the battery is low.

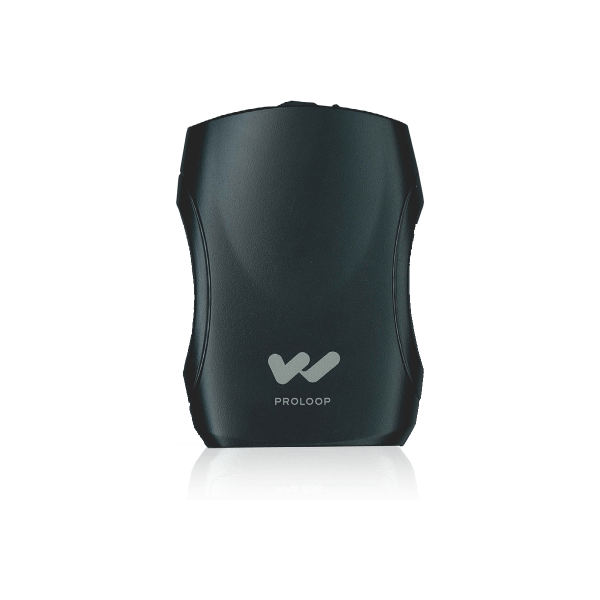

The receiver shall be the model PLR BP1.
PLR BP1
|
Dimensions:
|
4.1″H x 2.85″W x 1.38″D (104 mm H x 72 mm W x 35 mm D). |
|
Weight:
|
4.6 oz (130 g) with batteries, 2.6 oz (73 g) without batteries. |
|
Color/Material:
|
Black ABS/polycarbonate molded plastic case. |
|
Battery Type:
|
(2) AA (1.5VDC) Alkaline or NiMH (rechargeable). |
|
Battery Life:
|
Up to 200 hours with Alkaline batteries. |
|
LED Indicator:
|
Green LED indicates power on, flashes when batteries are low. |
|
Headphone Jack:
|
3.5mm stereo TRS jack works with mono or stereo headphones. |
|
Volume control:
|
External switched thumb wheel controls power on/off and volume level. |
|
Tone control:
|
Rotary control inside battery compartment (1kHz reference at 400mA/m input with Tone at mid position) |
|
Induction Coil:
|
Maximum reception: receiver oriented vertically |
|
Power Output:
|
35mW (max) into 33 ohms mono impedance |
|
THD:
|
[lt]2% |
|
Frequency Response:
|
300Hz to 10KHz, -6dB |
Warranty
2 Years
